SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door (lower-bdb/bdq/bdw)


04 - Door (upper-bdb/bdq/bdw)


05 - Gas Controls


06 - Oven


07 - Supplemental Information


08 - Wiring Information (lower)


09 - Wiring Information (upper)

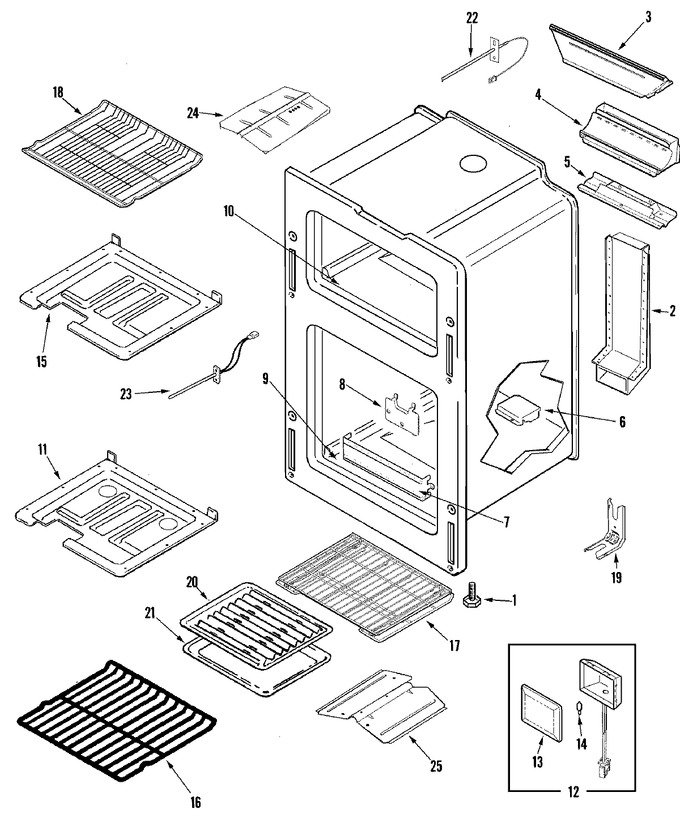

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
2	74007374		Extension, Vent (lwr)	10	Appelez-nous	-
2	74007956		Assembly. Flue (lower)	11	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74007375		Assembly, Flue	10	Appelez-nous	-
4	74007376		Extension, Vent (upr)	10	Appelez-nous	-
4	74007374		Extension, Vent (lwr)	11	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74007377		Bracket, Vent (upr)	10	Appelez-nous	-
6	74007378		Cover, Burner Opening	10	Appelez-nous	-
7	74007383		Baffle, Oven Vent-gas (lwr)	10	Appelez-nous	-
8	4005F421-45		Cover,igniter	10	Appelez-nous	-
9	2205F051-19		Bottom, Oven Gas (lwr)   (Replaces: 74007382)	10			$ 197.38
10	74007381		Bottom, Oven Gas (upr)	10	Appelez-nous	-
11	74007380		Pan, Bake Burner (lwr)	10	Appelez-nous	-
12	74004521		Halogen Lamp Assy	10	Appelez-nous	-
13	WP74004607		Lens, Cover   (Replaces: 74004607)	10			$ 20.09
14	WP74009925		Bulb, Halogen   (Replaces: 74004458)	10		Immediately	$ 20.37
15	74007379		Pan, Bake Burner (upr)	10	Appelez-nous	-
16	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
17	74005218		Rack, Telescoping Assy	10	Appelez-nous	-
18	WPW10273816		Rack, Oven (upr)   (Replaces: 74004578)	10			$ 144.76
19	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
20	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
21	Y3401F02019		Pan, Broil	10	Appelez-nous	-
22	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
23	WP74011433		Sensor, Oven (short)   (Replaces: 74003094)	10			$ 216.97
24	74007511		Baffle, Broil	10	Appelez-nous	-
25	74007406		Baffle, Bake	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
