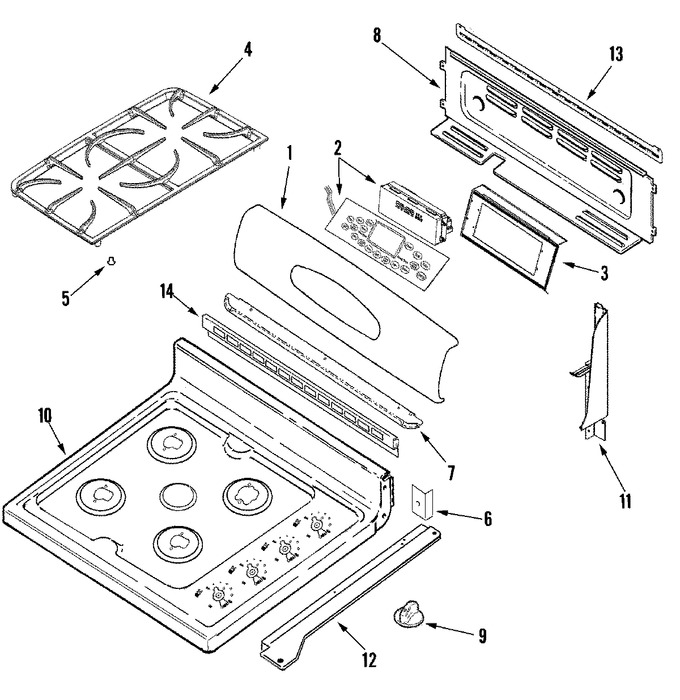

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010070 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WPW10166969 | Control, H3 (gas) (Replaces: 74010580) | 11 |
|
Immediately | $ 374.09 | |||
| 2 | 74010076 | Overlay, H3 Gas Control (wht) | 10 |
|
- | ||||
| 2 | WPW10166969 | Control, H3 (gas) (Replaces: 74010083) | 10 |
|
Immediately | $ 374.09 | |||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 4 | 74010073 | Grate (gry) | 10 |
|
- | ||||
| 5 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 6 | 74010106 | Bracket, Main Top | 10 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 74010099 | Trim, Vent (wht) | 10 |
|
- | ||||
| 7 | 74007582 | Screw (wht) | 10 |
|
- | ||||
| 8 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 8 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74010087 | Housing, Control Panel | 10 |
|
- | ||||
| 9 | 74007368 | Grommet | 10 |
|
$ 6.11 | ||||
| 9 | WP74005934 | Grommet (Replaces: 74005934) | 10 |
|
$ 7.66 | ||||
| 9 | 74010081 | Knob (wht) | 10 |
|
- | ||||
| 10 | 74010067 | Top, Main 4 Burner (wht) | 10 |
|
- | ||||
| 11 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 11 | 74009669 | Support, Backguard (wht-lt) | 10 |
|
- | ||||
| 11 | 74009672 | Support, Backguard (wht-rt) | 10 |
|
- | ||||
| 11 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 12 | 74007368 | Grommet | 10 |
|
$ 6.11 | ||||
| 12 | 74007366 | Box, Burner (lt) | 10 |
|
- | ||||
| 12 | 74007369 | Lock, Purse | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74007367 | Box, Burner (rt) | 10 |
|
- | ||||
| 13 | 74010084 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74009795 | Trim, Vent (gry) | 10 |
|
- |
