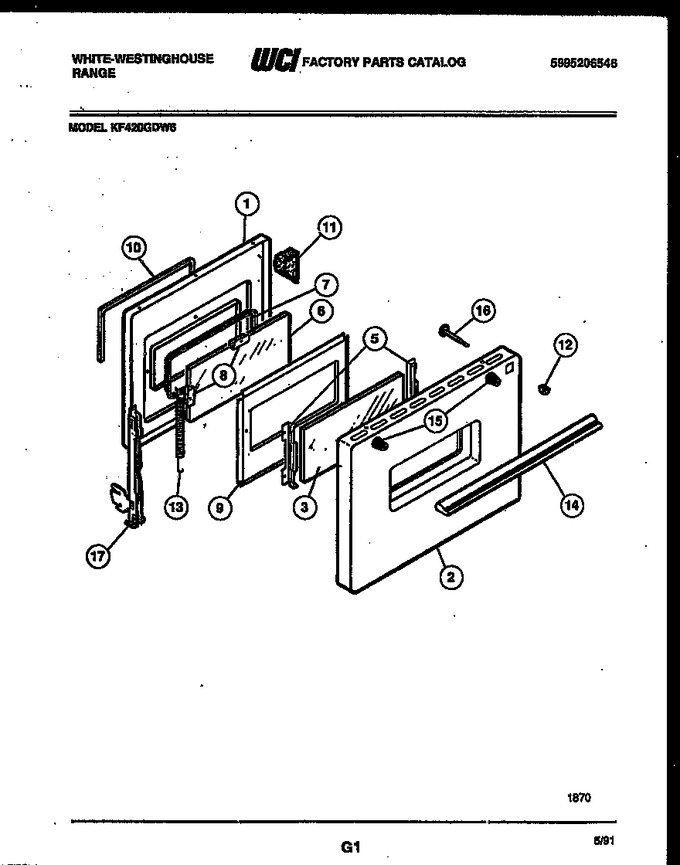

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051564 | Liner-door |
|
- | |||||
| 2 | 5301325498 | Panel, Door, Almond |
|
- | |||||
| 3 | 5301325512 | Glass - Outer |
|
- | |||||
| 5 | 3205109 | Rtnr - Outer Glass (2) |
|
- | |||||
| 6 | 5301325511 | Glass Inner Door |
|
- | |||||
| 7 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 8 | 3205108 | Rtnr - Inner Glass (4) |
|
- | |||||
| 9 | 54245000 | Panel-airwash |
|
- | |||||
| 10 | 3206199 | Seal-door |
|
- | |||||
| 11 | 5303051630 | Insulation |
|
- | |||||
| 12 | 5303051582 | Collar Actuator |
|
- | |||||
| 13 | 08003264 | Spring-oven Door |
|
- | |||||
| 14 | 5308014202 | Handle |
|
- | |||||
| 15 | 5308003153 | Spacer (2) |
|
- | |||||
| 16 | 5303051583 | Actuator-plunger |
|
- | |||||
| 17 | 5303207598 | Hinge - Assy (2) |
|
- |
