Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7201P138-60 Gasket, Window Appelez-nous -
2 74011142 Hinge, Door (2)   (Replaces: 7106P141-60) In-Stock Immediately $ 108.22

3 7701P526-60 Handle, Door Special Order $ 129.23

4 7760P154-60 Panel, Door Appelez-nous -
5 WP74010043 Insulation, Foil   (Replaces: 7002P427-60) Special Order $ 67.18

6 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

7 WP4159193 Screw (4)   (Replaces: 7101P282-60) Special Order $ 4.29

8 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

9 3804F265-45 Retainer, Glass Support (2) Special Order $ 9.40

10 WPW10162384 Gasket, Door   (Replaces: W10162384) In-Stock Immediately $ 77.61

11 7902P752-60 Glass, Outer Door Appelez-nous -
12 7902P468-60 Glass, Door Appelez-nous -
13 WP74001574 Nut, Snap (2)   (Replaces: 7103P141-60) In-Stock Immediately $ 9.91

14 74003645 Glass, Inner (2)   (Replaces: 7902P436-60) In-Stock Immediately $ 162.53

15 3601F373-51 Baffle, Door Special Order $ 244.22

16 7002P246-60 Insulation Special Order $ 58.49

17 2402W312-19 Liner, Door Special Order $ 144.50

18 3604F441-51 Shield, Lower Dr Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

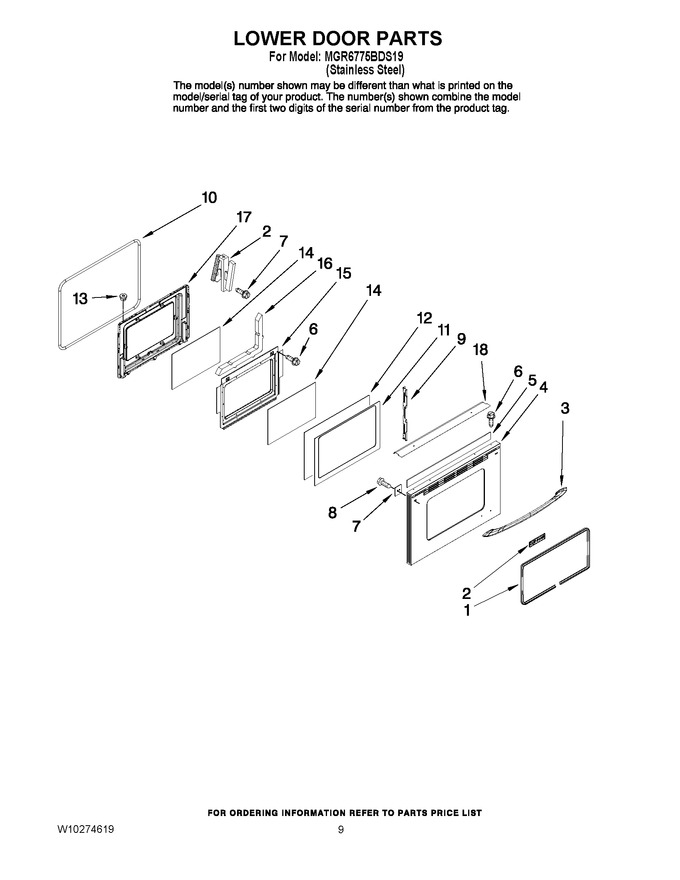

Diagram for MGR6775BDS19
