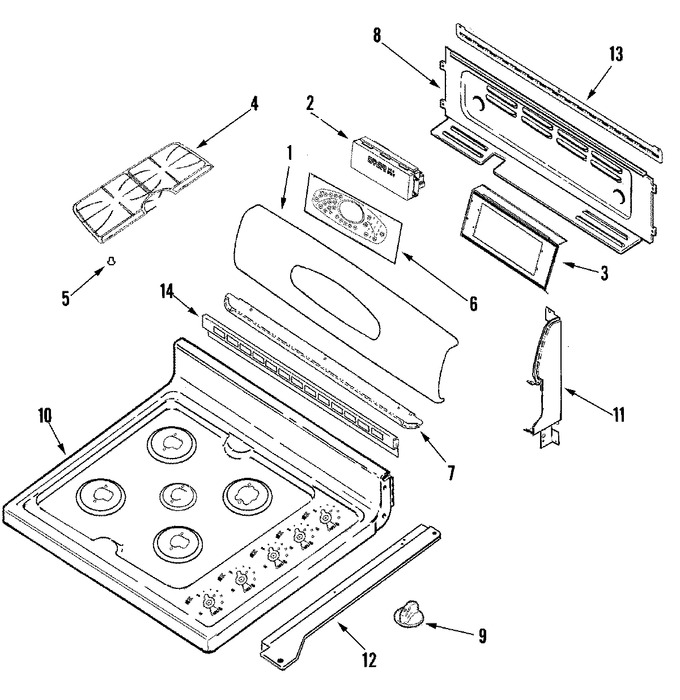

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2602N352-81		Panel, Control (wht)	10	Appelez-nous	-
2	WPW10166969		Control, H3 (gas)   (Replaces: 74010580)	10		Immediately	$ 374.09
3	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
3	74009052		Bracket, Clock	10	Appelez-nous	-
4	74010126		Grate (gry)	10			$ 97.76
5	W10919249		Bumper, Grate Bottom   (Replaces: 74007356)	10		Immediately	$ 11.30
6	7728P496-60		Overlay (wht)	10	Appelez-nous	-
7	74007582		Screw (wht)	10	Appelez-nous	-
7	74009799		Shield, Vent (wht)	10	Appelez-nous	-
8	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
8	74011109		Housing, Control Panel	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
9	WP74005934		Grommet   (Replaces: 74005934)	10			$ 7.66
9	74010081		Knob (wht)	10	Appelez-nous	-
10	2001N219-81		Top, Main (wht)	10	Appelez-nous	-
11	74010212		Support, Backguard (rt-wht)	10	Appelez-nous	-
11	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
11	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
11	74010713		Support, Backguard (lt-wht)	10	Appelez-nous	-
12	74007366		Box, Burner (lt)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74007367		Box, Burner (rt)	10	Appelez-nous	-
12	74007369		Lock, Purse	10	Appelez-nous	-
13	74010084		Shield, Sight	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	W11233072		Screw   (Replaces: 7101P147-60)	10		Immediately	$ 12.62
14	74009795		Trim, Vent (gry)	10	Appelez-nous	-
