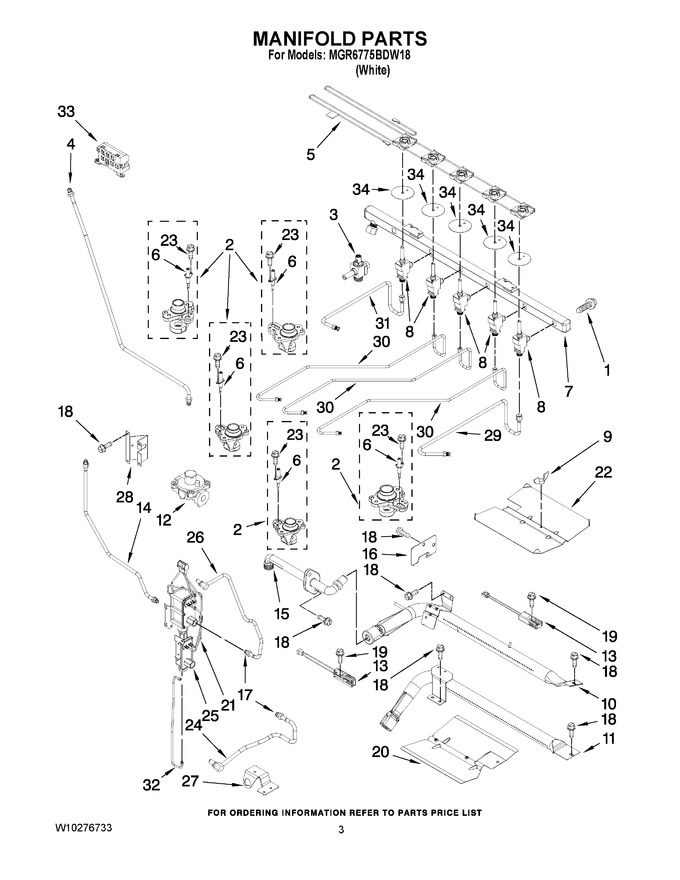

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P639-60		Screw, Valve (4)				$ 5.53
2	WP7527P023-60		Holder, Orifice (center 5k (1))   (Replaces: 7527P023-60)				$ 98.03
2	WP7527P021-60		Holder, Orifice (left Front 16k (1))   (Replaces: 7527P021-60)				$ 103.25
2	WP7527P028-60		Holder, Orifice (right Frt 12.5k(1))   (Replaces: 7527P028-60)			Immediately	$ 100.76
2	WP74007961		Holder, Orifice ((lr & Rr) 9.2k (2))   (Replaces: 7527P022-60)				$ 100.54
3	7502P565-60		Valve, Shut Off (includes Screw)				$ 303.86
4	7506P422-60		Tubing, Regulator-manifold		Appelez-nous	-
5	7450P106-60		Harness, Igniter (with Switches)		Appelez-nous	-
6	WP8523793		Ignitor,top Burner   (Replaces: 7432M126-60)			Immediately	$ 36.15
7	7513P529-60		Pipe, Manifold				$ 114.40
8	7502P561-60		Valve (center 5k (1))				$ 177.73
8	7502P562-60		Valve ((lr/rr/rf)9.2k (3))				$ 216.90
8	7502P564-60		Valve (left Front 16k (1))				$ 117.14
9	7103P030-60		Nut				$ 6.37
10	7505P323-60		Burner, Broiler				$ 40.94
11	7505P324-60		Burner, Bake		Appelez-nous	-
12	7510P089-60		Regulator, Pressure		Appelez-nous	-
13	7432P130-60		Igniter (broil)		Appelez-nous	-
13	W11596211		Igniter (bake)   (Replaces: 7432P143-60)			Immediately	$ 84.02
14	7506P429-60		Tubing (broiler Fitting To Valve)		Appelez-nous	-
15	7507P400-60		Fitting, Broiler		Appelez-nous	-
16	4005F421-45		Cover,igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 8.05
18	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
20	3601F339-45		Baffle, Bake Burner				$ 98.50
21	74011297		Harness, Triple Valve   (Replaces: 5171P603-60)		Appelez-nous	-
22	3601F358-45		Baffle, Broil Burner				$ 218.28
23	WP8273062		Screw, Igniter   (Replaces: 8273062)			Immediately	$ 7.12
24	7507P395-60		Tubing, Bake Burner (with Orifice)				$ 160.07
25	WP74011290		Valve, Bake/broil   (Replaces: 7501P221-60)				$ 295.97
26	7507P396-60		Tubing, Broil Burner (with Orifice)		Appelez-nous	-
27	3801F681-45		Bracket, Orfice				$ 7.82
28	3801F691-51		Bracket, Regulator		Appelez-nous	-
29	7506P378-60		Tubing (right) (2)				$ 81.84
30	7506P379-60		Tubing (left) (2)		Appelez-nous	-
31	7506P417-60		Tubing, Center		Appelez-nous	-
32	7506P428-60		Tubing, Manifold To Valve		Appelez-nous	-
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 305.10
34	WP74008212		Cover,valve Switch   (Replaces: 7724P194-60)				$ 6.88
NI	5789A602-60		Kit, Lp Gas				$ 43.94
NI	7003P148-60		Insulator, Orifice Ignitor		Appelez-nous	-
