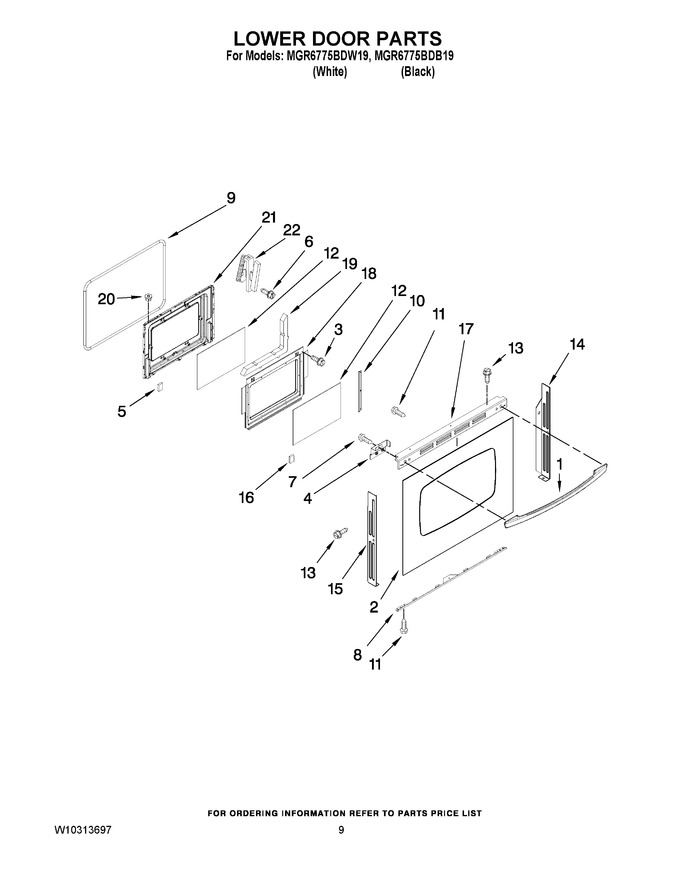

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74011767 | Handle, Door (black) (Replaces: 7701P516-60) |
|
$ 225.61 | |||||
| 1 | WP74011768 | Handle, Door (white) (Replaces: 7701P517-60) |
|
Immediately | $ 194.06 | ||||
| 2 | 7902P797-60 | Glass, Door (black) |
|
- | |||||
| 2 | 7902P736-60 | Glass, Door (white) |
|
- | |||||
| 3 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 4 | 3801F831-45 | Bracket, Handle (right) |
|
$ 19.17 | |||||
| 4 | 3801F832-45 | Bracket, Handle (left) |
|
$ 19.12 | |||||
| 5 | WP74005546 | Spacer, Rubber (2) (1/4 X 1 X 1/2) (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 6 | 7101P208-60 | Screw (10abx1/4p) |
|
$ 11.92 | |||||
| 7 | WP74006515 | Screw, Handle (Replaces: 7101P681-60) |
|
$ 7.29 | |||||
| 8 | WP3807F708-71 | Support, Glass (Replaces: 3807F708-71) |
|
$ 144.83 | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 | ||||
| 10 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 12 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 162.53 | ||||
| 13 | WP98008544 | Screw (white) (Replaces: 7101P636-60) |
|
$ 11.89 | |||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 14 | WP3608F116-71 | Trim, Door (right) (white) (Replaces: 3608F116-71) |
|
$ 112.01 | |||||
| 14 | 3608F116-70 | Trim, Door (right) (black) |
|
$ 49.75 | |||||
| 15 | 3608F117-70 | Trim, Door (left) (black) |
|
$ 49.73 | |||||
| 15 | WP3608F117-71 | Trim, Door (left) (white) (Replaces: 3608F117-71) |
|
$ 111.43 | |||||
| 16 | 8010P152-60 | Spacer, Rubber (2) (1/8 X 1/2 X 1/2) |
|
- | |||||
| 17 | 3608F141-70 | Trim, Door Top (black) |
|
$ 96.37 | |||||
| 17 | 3608F141-71 | Trim, Door Top (white) |
|
$ 98.12 | |||||
| 18 | 3601F373-51 | Baffle, Door |
|
$ 244.22 | |||||
| 19 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 20 | WP74001574 | Nut, Snap (black) (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 20 | WP7103P114-60 | Nut, Snap (white) (Replaces: 7103P039-60) |
|
$ 9.89 | |||||
| 21 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 22 | 74011142 | Hinge, Door (2) (Replaces: 7106P141-60) |
|
Immediately | $ 108.22 |
