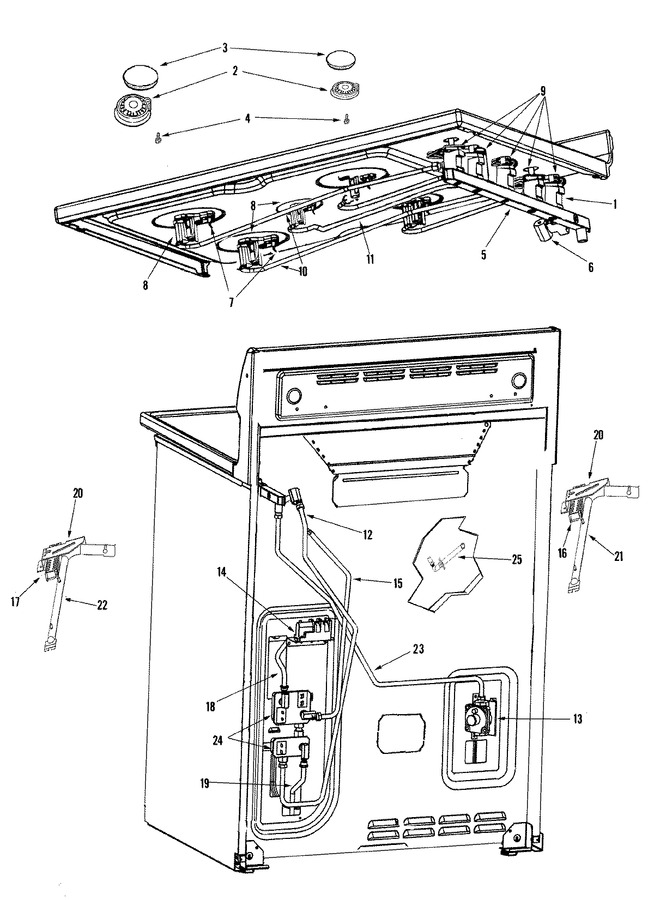

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12002268		Kit, Valve/screw 5k(mueller)	10			$ 177.73
1	12002269		Kit, Valve/screw 9k(mueller)	10			$ 192.06
1	12002270		Kit, Valve/screw 16k(mueller)	10			$ 258.73
2	WPW10406283		Base, Burner (9.2k)   (Replaces: 74007412)	10			$ 66.87
2	WPW10406797		Base, Burner   (Replaces: 74007698)	10			$ 79.64
2	WPW10406243		Base, Burner (5k)   (Replaces: 74007411)	10		Immediately	$ 33.50
2	WPW10406878		Base, Burner (16k)   (Replaces: 74007413)	10		Immediately	$ 92.12
3	WP74007925		Cap, Burner (med-blk)   (Replaces: 74007925)	10			$ 86.81
3	WP74007415		Cap, Burner (med-blk)   (Replaces: 74007415)	10			$ 87.35
3	WP3191898		Cap, Burner (smr-blk)   (Replaces: 74007416)	10			$ 60.86
3	74007414		Cap, Burner (lrg-blk)	10	Appelez-nous	-
4	W11772394		Screw, Self Tapping   (Replaces: 74007410)	10		Immediately	$ 10.94
5	74009904		Pipe, Manifold	10	Appelez-nous	-
5	7513D535-60		Pipe, Manifold	22	Appelez-nous	-
6	12002271		Kit, Valve/screw S/o(mueller)	10	Appelez-nous	-
7	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 36.15
8	WP7527P028-60		Holder, Orifice (12.5k)   (Replaces: 74007813)	10		Immediately	$ 100.76
8	WP74007961		Holder, Orifice (9.2k)   (Replaces: 74007961)	10			$ 100.54
8	WP7527P023-60		Holder, Orifice (5k)   (Replaces: 74007816)	10			$ 98.03
8	WP7527P021-60		Holder, Orifice (16k)   (Replaces: 74007962)	10			$ 103.25
9	12002791		Switch- As   (Replaces: W10136716)	19		Immediately	$ 205.25
9	WP74008212		Cover, Valve Switch   (Replaces: 74008212)	10			$ 6.88
9	12002791		Switch Assembly (5 Burner)   (Replaces: 74009903)	10		Immediately	$ 205.25
9	12002791		Switch- As   (Replaces: W10136716)	20		Immediately	$ 205.25
10	74009242		Tubing, Top Burner (lt)	10			$ 154.23
10	74009240		Tubing, Top Burner (rt)	10	Appelez-nous	-
11	74010124		Tubing, Top Burner (ctr)	10	Appelez-nous	-
12	74010096		Tubing, Manifold To Valve	10	Appelez-nous	-
12	74011291		Tubing, Manifold To Valve	14	Appelez-nous	-
13	74007387		Regulator	10			$ 143.87
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74009098		Module, Spark (5)	10			$ 305.10
15	74010095		Tubing, Upper Broil	10	Appelez-nous	-
15	74011292		Tubing, Upper Broil	14	Appelez-nous	-
16	74007966		Ignitor, Broil Burner	10			$ 96.10
17	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
17	W11596211		Ignitor, Bake Burner   (Replaces: 74007965)	10		Immediately	$ 84.02
18	74007451		Nut, Orifice Mounting	10			$ 8.05
18	74011293		Tubing/orifice, Burner (upr)	14			$ 85.07
18	74009246		Tubing, Bake Burner (upr)	10	Appelez-nous	-
19	74007451		Nut, Orifice Mounting	10			$ 8.05
19	74007425		Tubing, Bake Burner (lwr)	10	Appelez-nous	-
19	74011296		Tubing/orifice, Burner (lwr)	14	Appelez-nous	-
19	74009247		Tubing, Bake Burner (lwr)	10	Appelez-nous	-
20	74007426		Bracket, Orifice Fitting	10	Appelez-nous	-
21	7103P030-60		Nut, Wing	10			$ 6.37
21	7101P287-60		Screw, Metal Grounding	10			$ 12.03
21	74010093		Burner, Broil	10	Appelez-nous	-
22	74010094		Burner, Bake	10			$ 86.45
22	7103P030-60		Nut, Wing	10			$ 6.37
23	74010098		Tubing, Regulator To Manifold	10			$ 159.79
24	74007408		Valve, Bake & Broil	10	Appelez-nous	-
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	WP74011290		Valve, Bake & Broil   (Replaces: 74011290)	14			$ 295.97
25	74010612		Orifice/fitting, Broil	12			$ 44.13
25	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
25	74009901		Orifice, Broil	10	Appelez-nous	-
25	74009910		Fitting, Broil Orifice	10	Appelez-nous	-
