Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74010115 Panel, Control (bsq) 10 Appelez-nous -
2 74009985 Control/switch Assembly (bsq) 10 Appelez-nous -
3 WP74003976 Screw, Shoulder   (Replaces: 74003976) 10 Special Order $ 6.47

3 74010058 Bracket, Clock (h2) 10 Appelez-nous -
4 74010127 Grate (taupe) 10 Special Order $ 114.06

5 W10919249 Bumper, Grate Bottom   (Replaces: 74007356) 10 In-Stock Immediately $ 11.30

6 W11233072 Screw   (Replaces: 7101P147-60) 10 In-Stock Immediately $ 12.62

6 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

6 74010106 Bracket, Main Top 10 Appelez-nous -
6 W10124350 Not Required Part Or See Note 10 Appelez-nous -
7 74007583 Screw (taupe) 10 Appelez-nous -
7 74010100 Trim, Vent (bsq) 10 Appelez-nous -
8 7101P287-60 Screw, Metal Grounding 10 Special Order $ 12.03

8 W11772394 Screw   (Replaces: 7101P345-60) 10 In-Stock Immediately $ 10.94

8 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

8 74010087 Housing, Control Panel 10 Appelez-nous -
9 74010080 Knob (bsq) 10 Appelez-nous -
9 WP74005934 Grommet   (Replaces: 74005934) 10 Special Order $ 7.66

9 74007368 Grommet 10 Special Order $ 6.11

10 74010118 Top, Main 5 Burner (bsq) 10 Appelez-nous -
11 WP74003976 Screw, Shoulder   (Replaces: 74003976) 10 Special Order $ 6.47

11 WP98008545 Screw (blk)   (Replaces: 74009537) 10 Special Order $ 15.94

11 74009668 Support, Backguard (bsq-lt) 10 Appelez-nous -
11 74009671 Support, Backguard (bsq-rt) 10 Appelez-nous -
12 74007368 Grommet 10 Special Order $ 6.11

12 74007366 Box, Burner (lt) 10 Appelez-nous -
12 74007369 Lock, Purse 10 Appelez-nous -
12 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

12 74007367 Box, Burner (rt) 10 Appelez-nous -
13 74010084 Shield, Sight 10 Appelez-nous -
13 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

14 W11233072 Screw   (Replaces: 7101P147-60) 10 In-Stock Immediately $ 12.62

14 74009796 Trim, Vent (taupe) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

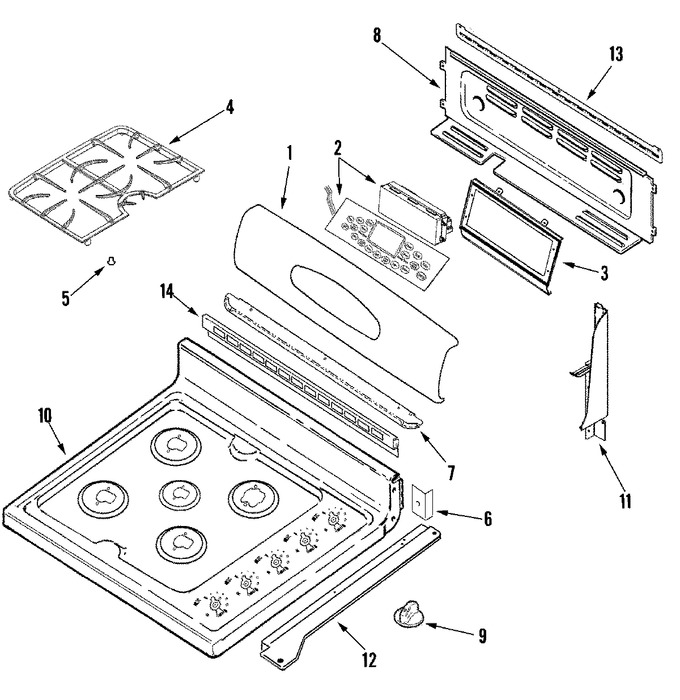

Diagram for MGR6875ADQ
