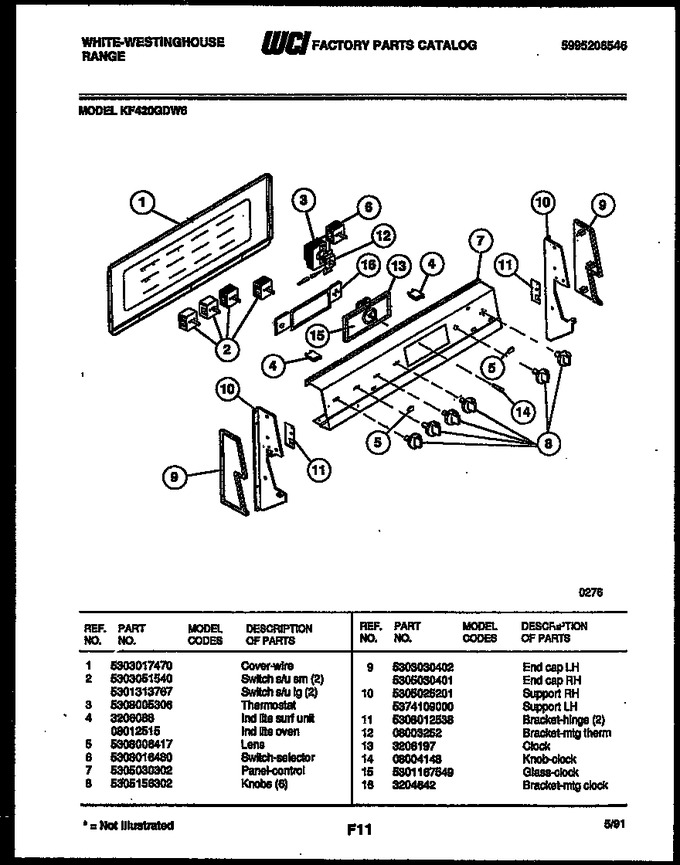

02 - Control Panel
03 - Cooktop Parts
04 - Broiler Parts
05 - Drawer Parts
06 - Door Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5308005306 | Thermostat |
|
- | |||||
| 4 | 3206088 | Ind Lite Surf Unit |
|
- | |||||
| 5 | 5308006417 | Lens |
|
$ 19.06 | |||||
| 6 | 5308016480 | Switch-selector |
|
$ 402.15 | |||||
| 7 | 5305030302 | Panel-control |
|
- | |||||
| 8 | 5305156302 | Knobs (6) |
|
- | |||||
| 9 | 5303030402 | End Cap Lh |
|
- | |||||
| 10 | 5305025201 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 13 | 3206197 | Clock |
|
- | |||||
| 14 | 08004148 | Knob-clock |
|
- | |||||
| 15 | 5301167549 | Glass - Clock |
|
- | |||||
| 16 | 3204642 | Bracket-mtg Clock |
|
- | |||||
| 10A | 5374109000 | Support Lh |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 4A | 08012515 | Ind Lite Oven |
|
- | |||||
| 9A | 5305030401 | End Cap Rh |
|
- |
