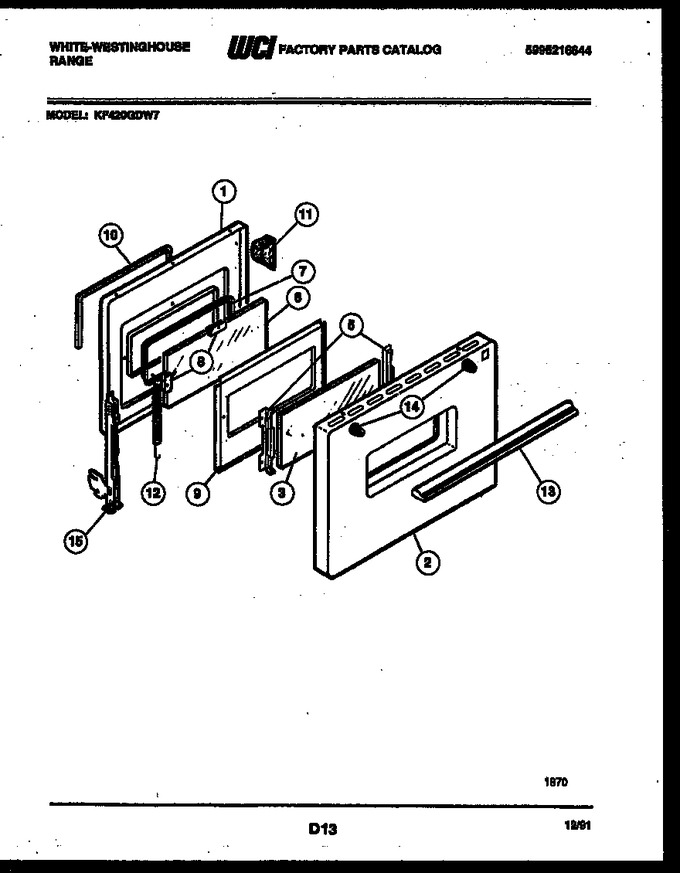

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051564 | Liner-door |
|
- | |||||
| 2 | 35069000 | Panel-door White |
|
- | |||||
| 3 | 5301325512 | Glass - Outer |
|
- | |||||
| 5 | 3205109 | Rtnr - Outer Glass (2) |
|
- | |||||
| 6 | 5301325511 | Glass Inner Door |
|
- | |||||
| 7 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 8 | 3205108 | Rtnr - Inner Glass (4) |
|
- | |||||
| 9 | 54245000 | Panel-airwash |
|
- | |||||
| 10 | 3206199 | Seal-door |
|
- | |||||
| 11 | K1325629 | Insulation |
|
- | |||||
| 12 | 08003264 | Spring-oven Door |
|
- | |||||
| 13 | 5303280334 | Handle |
|
- | |||||
| 14 | 5308003153 | Spacer (2) |
|
- | |||||
| 15 | 5303207598 | Hinge - Assy (2) |
|
- |
