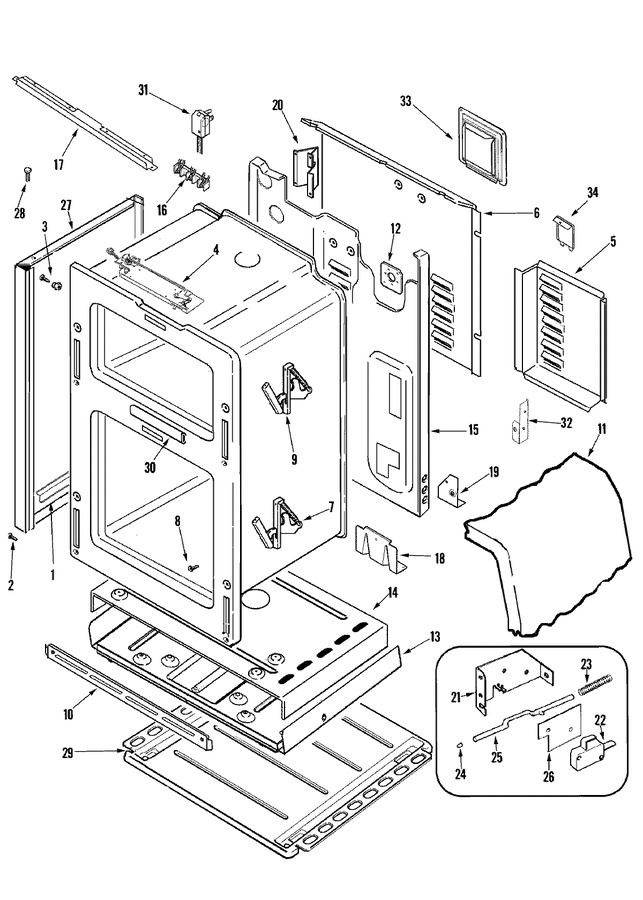

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74007427		Spacer, Side Panel (long)	10			$ 8.95
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	WPW10348409		Screw, W/shoulder   (Replaces: 74007476)	10		Immediately	$ 6.98
3	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
4	74003975		Screw (8abx3/8-blk)	10			$ 12.02
4	74007429		Lock, Door Latch Asy.	10			$ 319.39
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74007430		Cover, Main Wire (lwr)	10	Appelez-nous	-
6	74007431		Cover, Main Wire (upr)	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	WP74011141		Hinge, Door   (Replaces: 74003968)	10		Immediately	$ 128.06
8	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
9	74007830		Hinge Assy. Upper Door	10	Appelez-nous	-
10	WP98008545		Screw (blk)   (Replaces: 74009537)	10			$ 15.94
10	74007436		Trim, Kickplate (blk)	10	Appelez-nous	-
11	74010089		Insulation, Oven Wrap (lwr)	10	Appelez-nous	-
11	74007440		Insulation, Wrap (upr)	10			$ 130.93
11	74010091		Insulation, Back (lwr)	10			$ 73.67
11	74010090		Insulation, Back (upr)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74007450		Plate, Broil Fitting	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74007443		Retainer, Bottom Insul.	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74007577		Cover, Bottom Insulation	10	Appelez-nous	-
15	74010104		Back, Main	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
17	74003384		Bracket, Main Top	10	Appelez-nous	-
18	74005500		Support, Oven (lwr)	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	74007447		Bracket, Reinforcement (rt)	10	Appelez-nous	-
19	74007446		Bracket, Reinforcement (lt)	10	Appelez-nous	-
20	74007448		Bracket, Regulator	10	Appelez-nous	-
21	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
21	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
22	74004536		Switch	10			$ 115.26
22	WP7450P108-60		Switch, Light Assy   (Replaces: W10201670)	22		Immediately	$ 138.24
22	7101P330-60		Screw, Switch	10	Appelez-nous	-
23	74001629		Spring, Door Switch	10			$ 15.03
24	74001631		Bumper, Rod	10			$ 5.22
25	74003562		Rod, Door Light Switch	10	Appelez-nous	-
26	74001872		Insulator, Switch	10	Appelez-nous	-
27	74003283		Panel, Side (blk)	10	Appelez-nous	-
27	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
28	74001663		Glide	10	Appelez-nous	-
29	74009962		Base, Gemini	10	Appelez-nous	-
30	74007428		Seal, Front Frame	10			$ 31.46
31	74007373		Cord, Power	10	Appelez-nous	-
32	74007499		Support, Oven Upr (rt)	10	Appelez-nous	-
32	74007500		Support, Oven Upr (lt)	10	Appelez-nous	-
33	74005498		Retainer, Insulation (convect)	10	Appelez-nous	-
34	74010120		Cover, Convect Motor	10	Appelez-nous	-
