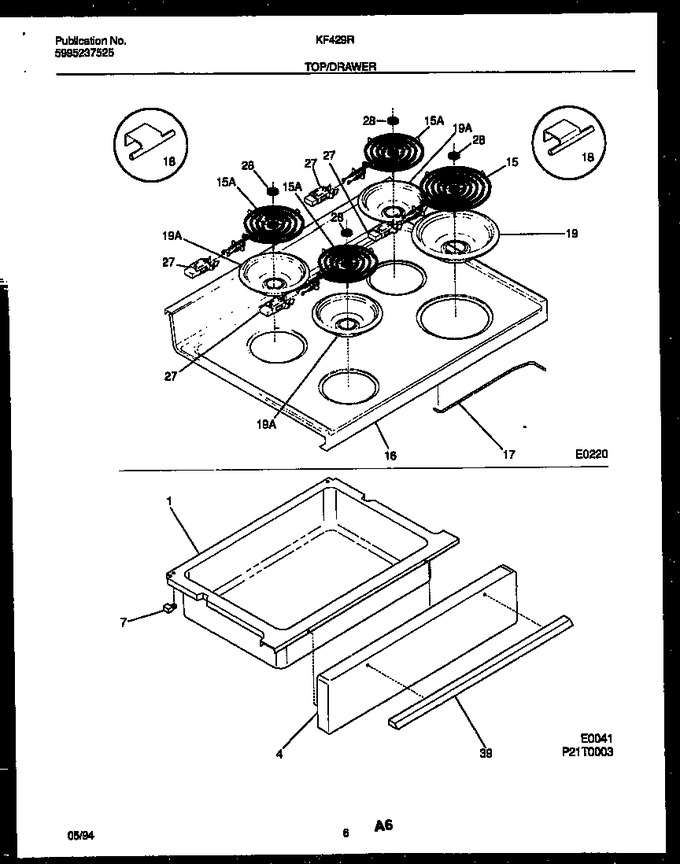

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011051 | Drawer-utility |
|
- | |||||
| 4 | 5308011056 | Panel-drawer, White |
|
- | |||||
| 7 | 5303209487 | Glide-drawer, Rear |
|
- | |||||
| 15 | 316442300 | Element-surface,large/8 Inch (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 16 | 98476000 | Main Top, White |
|
- | |||||
| 17 | 5303211119 | Rod-maintop Support, Rh |
|
- | |||||
| 18 | 08012537 | Hinge Pin |
|
- | |||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 28 | 3017801 | Medallion, Stainless Steel, Surf Elem |
|
- | |||||
| 39 | 5303280334 | Handle-drawer/door, Brushed Chrome |
|
- | |||||
| 15A | 318372210 | Element-surface,small/6 Inch (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 17A | 5303211120 | Rod-maintop Support, Lh, (non-illustrated) |
|
- | |||||
| 19A | 316048414 | Pan-surface Element, Small / 6 Inch (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 1A | 3051050 | Screw-shoulder, (non-illustrated) |
|
$ 12.29 |
