01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Upper Door Parts
05 - Upper Door Parts

Diagram for 06 - Lower Door Parts
06 - Lower Door Parts

Diagram for 07 - Rack Parts
07 - Rack Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F733-71 Support, Backguard (right) Special Order $ 9.32

1 3807F734-71 Support, Backguard (left) Special Order $ 38.79

2 3608F121-37 Trim, Vent Special Order $ 62.80

3 2602N351-81 Panel, Control Appelez-nous -
4 7101P663-60 Screw Appelez-nous -
5 3801F851-51 Bracket, Control Special Order $ 79.10

6 7450P088-60 Shield, Vent Appelez-nous -
7 W10328367 Control W/membrane Appelez-nous -
8 8036P025-60 Shield, Sight Appelez-nous -
9 4005F805-51 Cover, Rear Wire Appelez-nous -
10 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.47

11 3604F398-81 Shield, Vent Special Order $ 13.20

12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.26

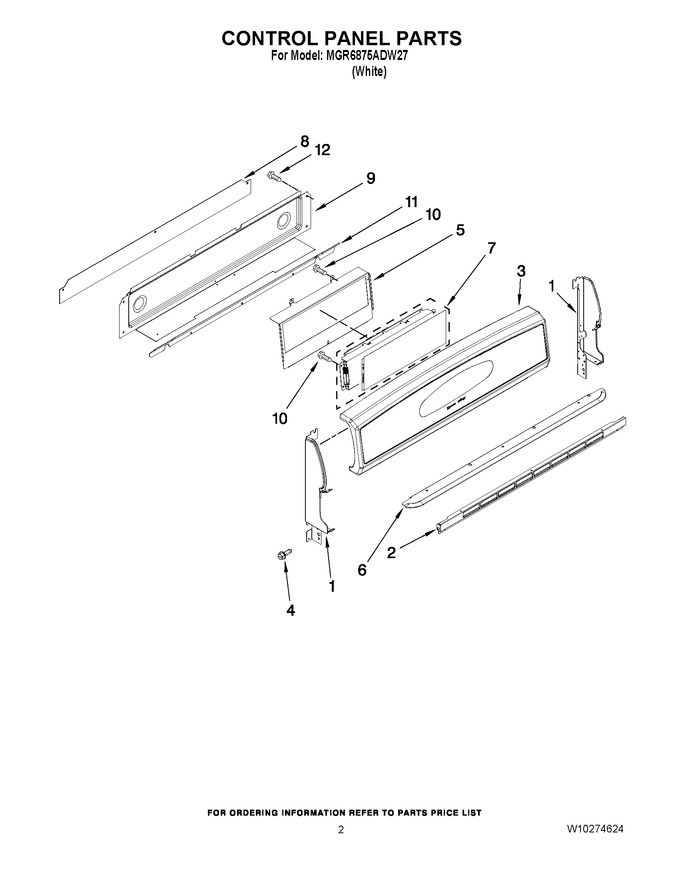

    View Diagram in Separate Window     Print Icon   Print Part List
