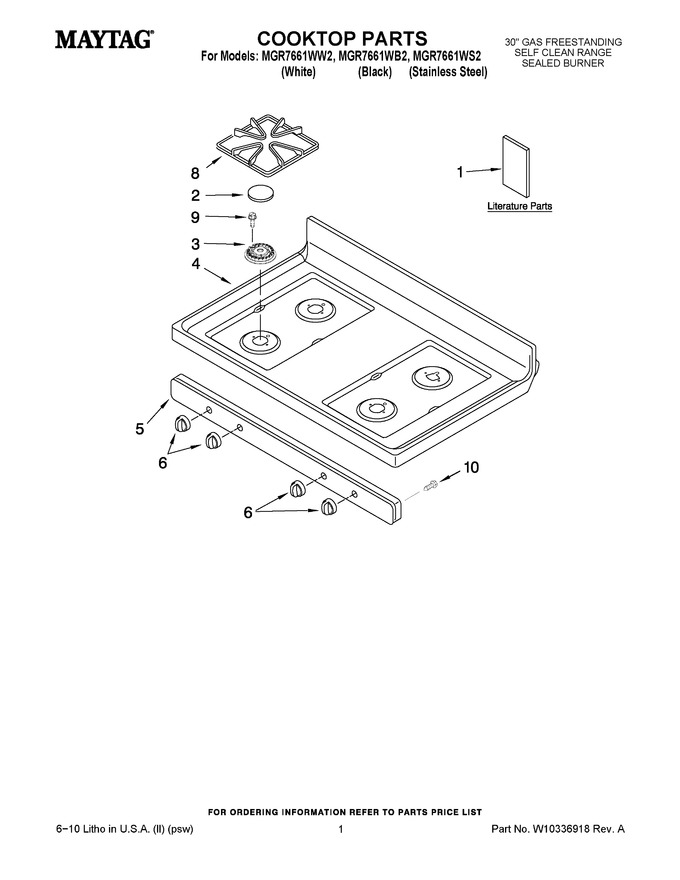

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196160 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10234648 | Owners Manual |
|
- | |||||
| 1 | W10198635 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | English |
|
- | |||||
| 1 | W10065852 | French |
|
- | |||||
| 2 | WPW10165809 | Cap, Burner (grey) (Replaces: W10165809) |
|
$ 118.56 | |||||
| 2 | WPW10170554 | Cap, Burner (black) (Replaces: W10170554) |
|
$ 120.22 | |||||
| 3 | WPW10406283 | Burner (r. Front, L. Rear) (Replaces: W10194076) |
|
$ 66.87 | |||||
| 3 | WPW10406243 | Burner (right Rear) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 3 | WPW10406797 | Burner (left Front) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 4 | 8272251 | Cooktop (white) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 151.01 | |||||
| 5 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 249.07 | |||||
| 6 | WPW10200193 | Knob, Control (4) (black) (Replaces: W10200193) |
|
$ 20.73 | |||||
| 6 | WPW10200192 | Knob, Control (4) (white) (Replaces: W10200192) |
|
Immediately | $ 71.93 | ||||
| 8 | WPW10447925 | Grate, Burner (4) (black) (Replaces: 8522858) |
|
Immediately | $ 256.76 | ||||
| 8 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: W10166295) |
|
Immediately | $ 256.76 | ||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 |
