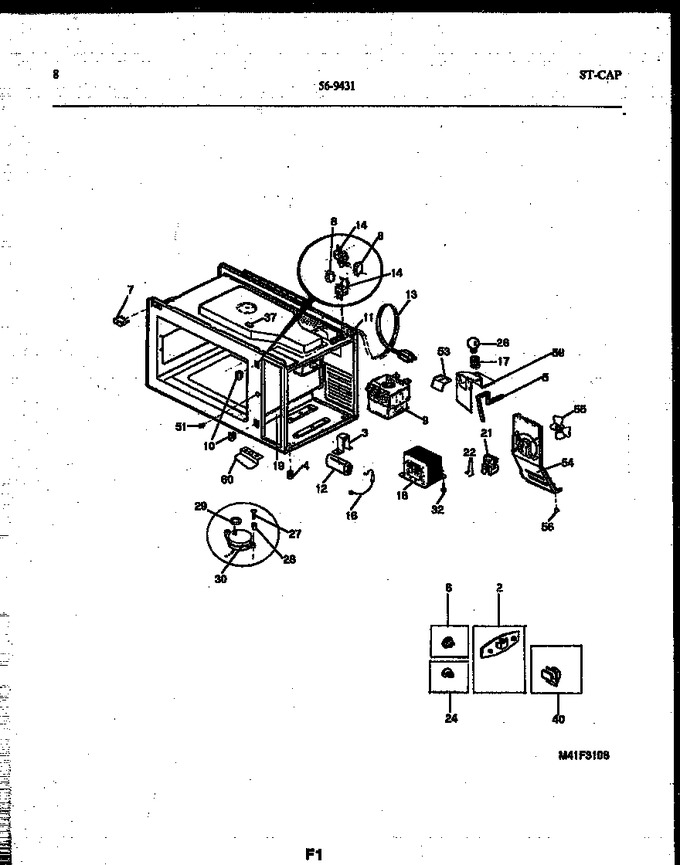

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 5308037665 | Plug, Button, White, Tray, (2) |
|
- | |||||
| 26 | 5303212801 | Lamp, 40 W, 120 V |
|
$ 53.13 | |||||
| 27 | 5303200767 | Screw-turntable Mtr, 6-32 X 5/8, (2) |
|
- | |||||
| 28 | 5303203151 | Spacer-turntable Mtr, (2) |
|
- | |||||
| 29 | 5303203152 | Washer, Turntable Mtr, Place Between Mtr & Oven Btm |
|
- | |||||
| 30 | 5303212920 | Motor-turntable 120v |
|
- | |||||
| 32 | 5303013944 | Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2) |
|
- | |||||
| 37 | 5308037724 | Spacer |
|
- | |||||
| 40 | 5303014221 | Support Rack (8) |
|
- | |||||
| 51 | 5308037644 | Grommet-door |
|
- | |||||
| 53 | 5303269832 | Duct-air |
|
- | |||||
| 54 | 5303269833 | Duct-air, Fan |
|
- | |||||
| 55 | 5303269834 | Fan Blade |
|
- | |||||
| 56 | 5303269846 | Rivet, Plastic, Fan Air Duct, (2) |
|
- | |||||
| 59 | 5303286094 | Duct-magnetron |
|
- | |||||
| 60 | 5303283612 | Bracket, Angle, Front Right Btm |
|
- | |||||
| *71950 | 5303273296 | Harness-wiring, Main |
|
- | |||||
| *71950 | 5303017863 | Screw, Truss, 6(a) X 1/2, Angle Bracket, (2) |
|
- | |||||
| 30A | 5303273297 | Harness-wiring, 1.3, Turntable (non-illustrated) |
|
- |
