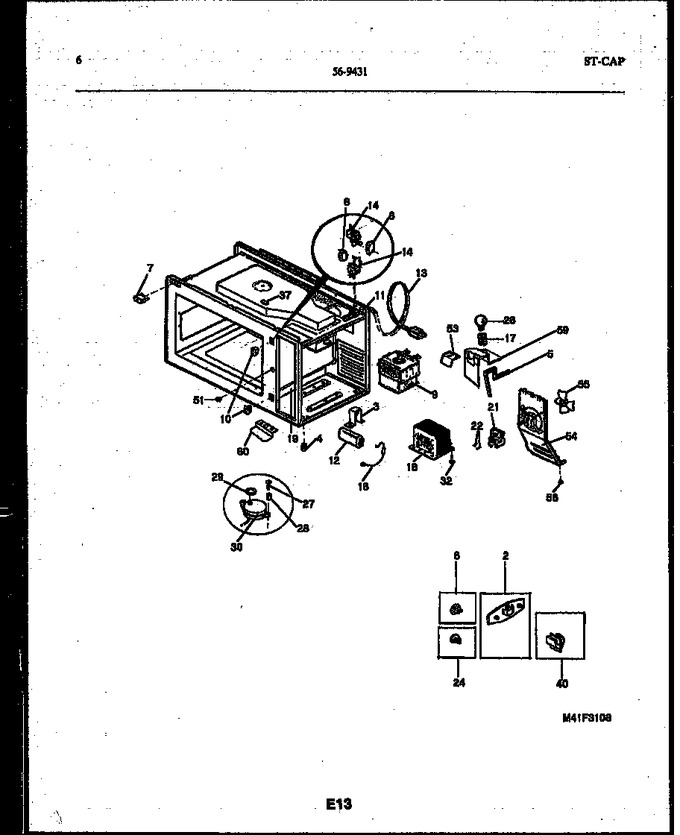

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303011670 | Fuse, 20 Amp, 250 V |
|
- | |||||
| 2 | 5303013626 | Plug-button, Browner, (2) |
|
- | |||||
| 3 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 4 | 5303014097 | Spacer, Foot, (4) |
|
- | |||||
| 5 | 5303017864 | Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size |
|
- | |||||
| 6 | 5303201365 | Plug, Button, White. Probe |
|
- | |||||
| 7 | 5303201602 | Switch, Monitor, Sensor |
|
- | |||||
| 8 | 5303203636 | Switch, Interlock |
|
- | |||||
| 9 | 5303206781 | Magnetron |
|
- | |||||
| 10 | 5303212767 | Bezel Latch (2) |
|
- | |||||
| 11 | 5303212769 | Bushing-fuse Holder, Strain Relief |
|
- | |||||
| 12 | 5303269608 | Capacitor |
|
- | |||||
| 13 | 5303212774 | Cord, Elec Service, 120v |
|
- | |||||
| 14 | 5303280317 | Bracket, Switch, (2) |
|
- | |||||
| 16 | 5303269837 | Harness And Diode, Hv |
|
- | |||||
| 17 | 5303212810 | Socket, Oven Lamp, 120v |
|
- | |||||
| 18 | 5303212811 | Transformer, 120v |
|
- | |||||
| 19 | 5303273954 | Seal-foam, Cut To Size |
|
- | |||||
| 21 | 5303922053 | Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I |
|
- | |||||
| 22 | 5308014502 | Screw, 6, 32 X 1, 1/8, Fan Motor, (2) |
|
- |
