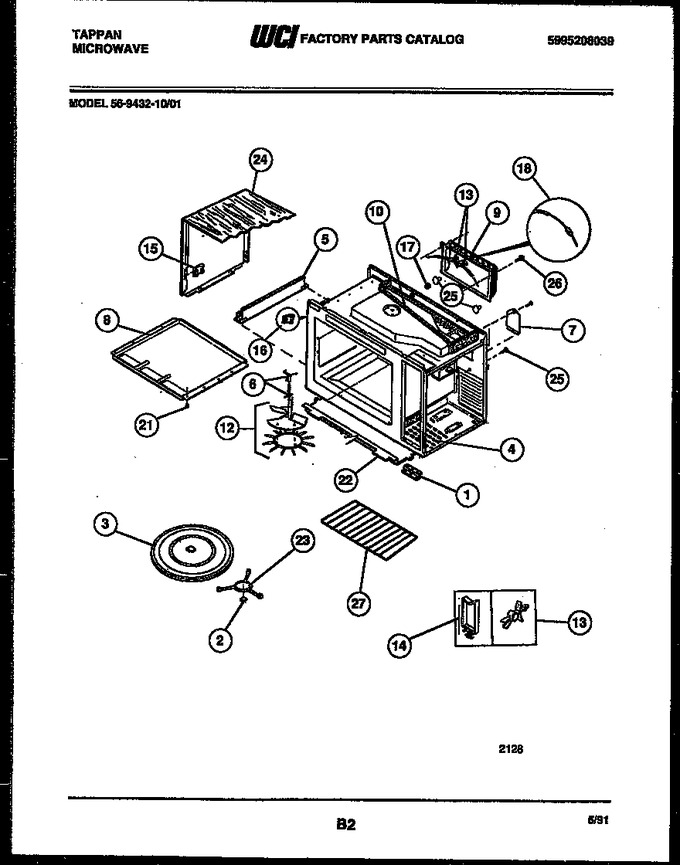

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270384 | Bracket-control Panel Support |
|
- | |||||
| 2 | 5303212919 | Bushing-motor |
|
- | |||||
| 3 | 5308037674 | Tray-oven |
|
- | |||||
| 4 | 5303269830 | Channel-base-rh |
|
- | |||||
| 5 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 6 | 5303922010 | Collar-stirrer-(includes Support, Collar And Washer) |
|
- | |||||
| 7 | 5303212775 | Cover-light |
|
- | |||||
| 8 | 5303212887 | Cover, Stirrer |
|
- | |||||
| 9 | 5303269958 | Duct-air, Exhaust |
|
- | |||||
| 10 | 5308037640 | Seal-foam |
|
- | |||||
| 12 | 5303274930 | Fan-air Assy |
|
- | |||||
| 13 | 5303212788 | Support-thermal Protector (2) |
|
- | |||||
| 14 | 5308037677 | Clip, Wires, (3) |
|
- | |||||
| 15 | 5303012322 | Clip, Wrapper, (2) |
|
- | |||||
| 16 | 3203010 | Clip, Hinge, (4) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 17 | 5303212795 | Grommet, Split |
|
- | |||||
| 18 | 5303212800 | Harness-fire Protector |
|
- | |||||
| 21 | 5303013807 | Rivet-cover-stirrer |
|
- | |||||
| 22 | 5303273508 | Shield-bottom |
|
- | |||||
| 23 | 5303091004 | Support-rollers |
|
- | |||||
| 24 | 5303269842 | Wrapper-wood Grain |
|
- | |||||
| 25 | 5303091555 | Plug Button-white (3) |
|
- | |||||
| 26 | 5303271024 | Screw-tamper Proof (2) |
|
- | |||||
| 27 | 5303206085 | Rack-oven |
|
- | |||||
| *51233 | 5308010077 | Clip-purselock |
|
- | |||||
| 25A | 5303091100 | Screw-wrapper (27) (non-illustrated) |
|
- | |||||
| 25B | 5303269841 | Shield-oven Lamp-mylar (non-illustrated) |
|
- | |||||
| 25C | 5303203124 | Paint-white Touch Up (non-illustrated) |
|
- |
