01 - Cooktop Parts

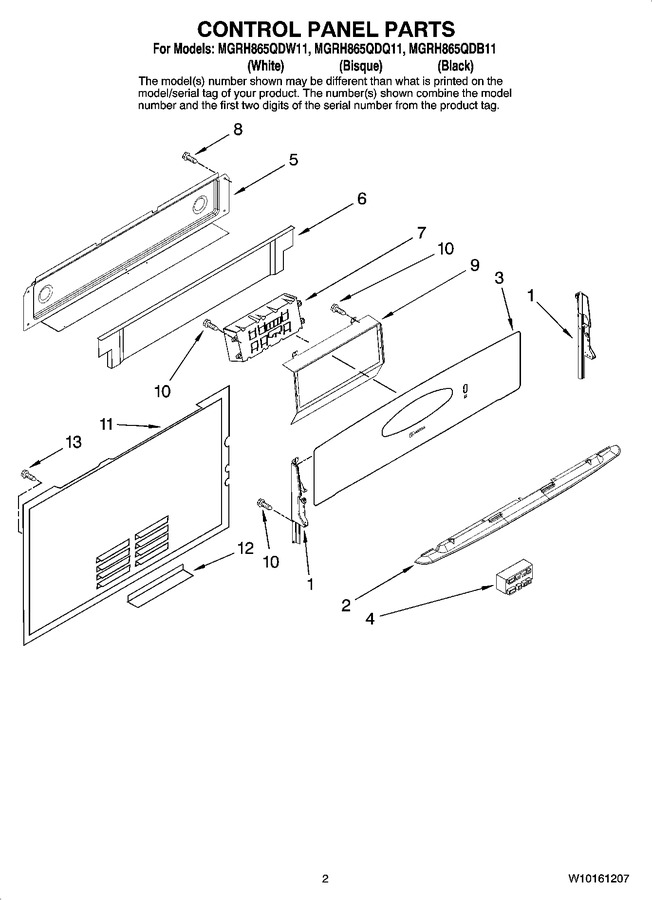

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009023 | Endcap, Left Hand (black) |
|
$ 31.24 | |||||
| 1 | 74008720 | Endcap, Left Hand (white) |
|
- | |||||
| 1 | 74008721 | Endcap, Left Hand (bisque) |
|
- | |||||
| 1 | 74009022 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 74008723 | Endcap, Right Hand (white) |
|
- | |||||
| 1 | 74008724 | Endcap, Right Hand (bisque) |
|
- | |||||
| 2 | 74009203 | Heat Shield,visor (white) |
|
- | |||||
| 2 | 74009204 | Heat Shield,visor (bisque) |
|
$ 38.28 | |||||
| 2 | 74009202 | Heat Shield,visor (black) |
|
- | |||||
| 3 | 74009076 | Panel, Control (white) |
|
- | |||||
| 3 | WP74008252 | Panel, Control (bisque) (Replaces: 74008075) |
|
$ 158.71 | |||||
| 3 | 74009074 | Panel, Control (black) |
|
- | |||||
| 4 | 74008821 | Module, Spark |
|
$ 212.63 | |||||
| 5 | 74010935 | Cover, Upper |
|
- | |||||
| 6 | 74009444 | Shield, Vent |
|
- | |||||
| 7 | W10141396 | Control (includes Overlay) (black) |
|
- | |||||
| 7 | W10145167 | Control (includes Overlay) (bisque) |
|
- | |||||
| 7 | W10145166 | Control (includes Overlay) (white) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 9 | 74009052 | Bracket, Control |
|
- | |||||
| 10 | WP74003976 | Screw (Replaces: 74003976) |
|
$ 6.47 | |||||
| 11 | 74009652 | Cover, Main Wire |
|
- | |||||
| 12 | 74008867 | Bottom, Wire Cover |
|
- | |||||
| 13 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 |
