SELECT A DIAGRAM

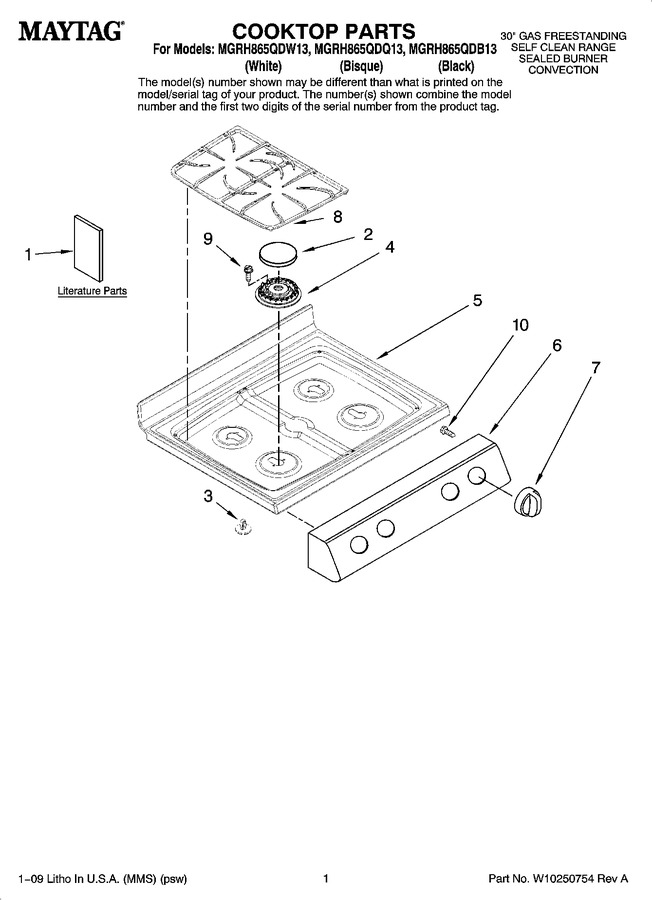

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156248		Installation Instructions		Appelez-nous	-
1	8113P688-60		Owners Manual		Appelez-nous	-
2	WP74007420		Cap, Burner (rf) (gray)   (Replaces: 74007420)				$ 112.29
2	74007418		Cap, Burner (rr & Lf) (taupe)				$ 39.39
2	W10154101		Cap, Burner (rf) (black)				$ 55.09
2	WP74007417		Cap, Burner (rf) (taupe)   (Replaces: 74007417)				$ 121.73
2	WP3191898		Cap, Burner (lr) (black)   (Replaces: 74007416)				$ 60.86
2	74007422		Cap, Burner (lr) (gray)				$ 30.56
2	WP74007419		Cap, Burner (lr) (taupe)   (Replaces: 74007419)				$ 66.47
2	WP74007415		Cap, Burner (rr & Lf) (black)   (Replaces: 74007415)				$ 87.35
2	WP74007421		Cap, Burner (rr & Lf) (gray)   (Replaces: 74007421)				$ 81.71
3	74008761		Spacer, Snap-in				$ 7.55
4	WPW10406283		Burner (rr & Lf)   (Replaces: 74009900)				$ 66.87
4	WPW10406878		Burner (rf)   (Replaces: 74007413)			Immediately	$ 92.12
4	WPW10406243		Burner (lr)   (Replaces: 74007411)			Immediately	$ 33.50
5	74009115		Cooktop (white)		Appelez-nous	-
5	74009116		Cooktop (bisque)		Appelez-nous	-
5	74009114		Cooktop (black)		Appelez-nous	-
6	74011115		Panel, Manifold (white)		Appelez-nous	-
6	74011116		Panel, Manifold (bisque)		Appelez-nous	-
6	74011114		Panel, Manifold (black)		Appelez-nous	-
7	WP74009775		Knob, Control (4) (white)   (Replaces: 74009775)				$ 20.48
7	74009774		Knob, Control (4) (bisque)		Appelez-nous	-
7	74009773		Knob, Control (4) (black)				$ 17.64
8	74009121		Grate, Burner (2) (gray)				$ 90.95
8	74009120		Grate, Burner (2) (black)				$ 238.73
8	74009122		Grate, Burner (2) (taupe)				$ 94.74
9	WP3368921		Screw (8)   (Replaces: 7101P685-60)			Immediately	$ 6.42
10	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
