Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10134835 Glass, Outer Appelez-nous -
2 3801F918-51 Bracket, Glass Appelez-nous -
3 74011771 Handle, Door Appelez-nous -
4 74008926 Liner, Door Appelez-nous -
5 74003645 Glass, Inner (2) In-Stock Immediately $ 162.53

6 WP74004224 Tape, White   (Replaces: 74004224) Special Order $ 10.53

7 W11233072 Screw   (Replaces: 74001530) In-Stock Immediately $ 12.62

8 74003647 Insulation,door Appelez-nous -
9 3601F380-51 Retainer, Insulation Special Order $ 25.83

10 74010545 Hinge, Door Special Order $ 107.15

11 7760P232-60 Glass, Outer Door Appelez-nous -
12 7002P482-60 Insulation, Foil Appelez-nous -
13 WP74006515 Screw (2)   (Replaces: 74011674) Special Order $ 7.29

14 WP74009029 Gasket, Door   (Replaces: 74009029) In-Stock Immediately $ 145.22

15 74011458 Bracket, Window(2) Appelez-nous -
16 WPY706189 Screw   (Replaces: Y706189) In-Stock Immediately $ 6.47

17 WP4159193 Screw   (Replaces: 7101P282-60) Special Order $ 4.29


    View Diagram in Separate Window     Print Icon   Print Part List

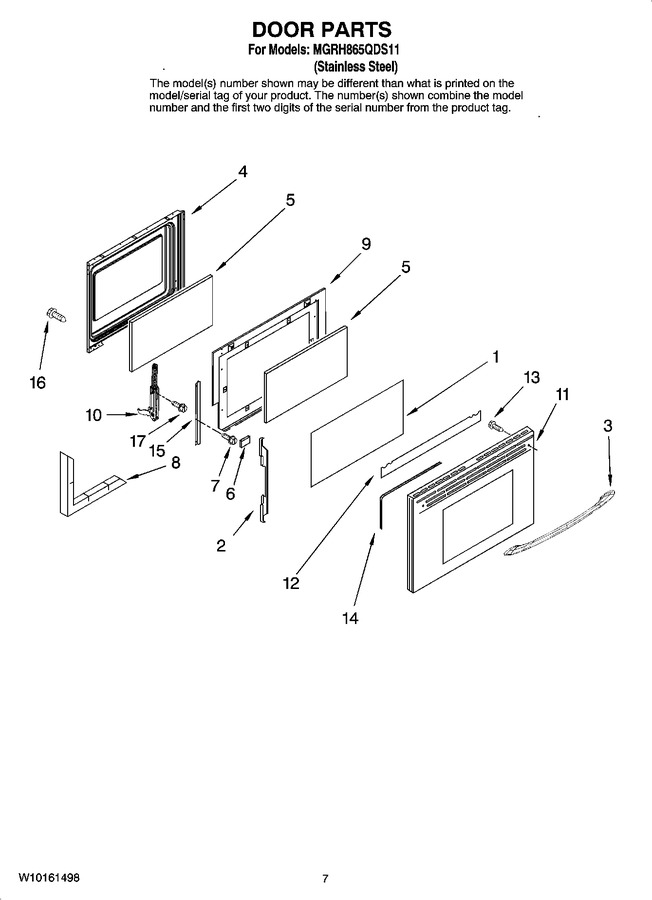

Diagram for MGRH865QDS11
