Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74009022 Endcap (2) (right) Appelez-nous -
1 74009023 Endcap (2) (left) Special Order $ 31.24

2 74009202 Heat Shield,visor Appelez-nous -
3 74010803 Panel, Control Special Order $ 46.59

4 74008821 Module, Spark Special Order $ 212.63

5 74010935 Cover, Upper Appelez-nous -
6 74009444 Shield, Vent Appelez-nous -
7 W10141396 Control (includes Overlay) Appelez-nous -
8 W11233072 Screw   (Replaces: 74001530) In-Stock Immediately $ 12.62

9 74009052 Bracket, Control Appelez-nous -
10 WP74003976 Screw   (Replaces: 74003976) Special Order $ 6.47

11 74009652 Cover, Main Wire Appelez-nous -
12 74008867 Bottom, Wire Cover Appelez-nous -
13 WP7101P434-60 Screw   (Replaces: 71001394) Special Order $ 6.26


    View Diagram in Separate Window     Print Icon   Print Part List

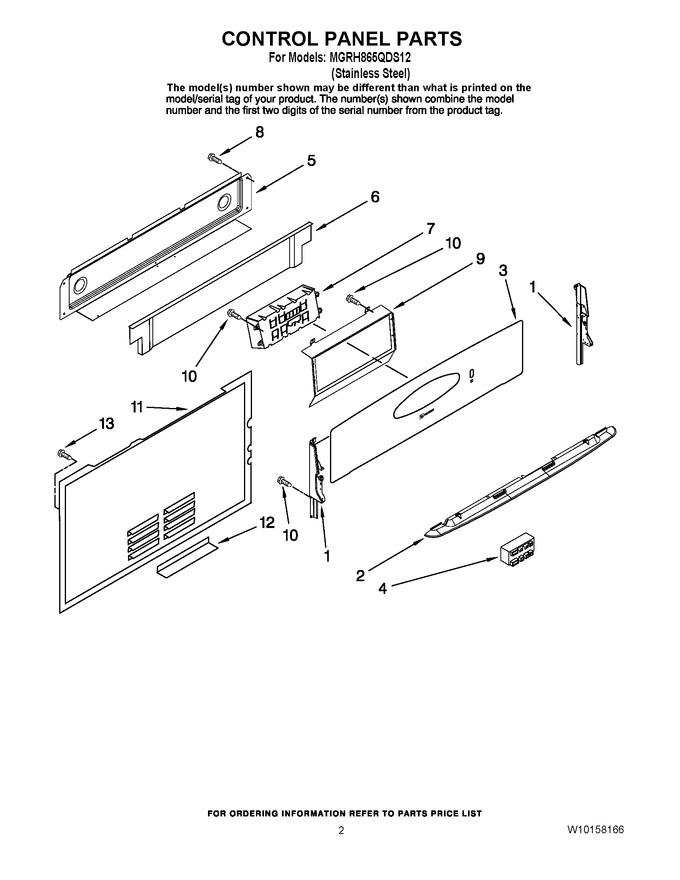

Diagram for MGRH865QDS12
