Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10134835 Glass, Outer Appelez-nous -
2 WP98008545 Screw (black)   (Replaces: 74009537) Special Order $ 15.94

3 74011771 Handle, Door (stainless) Appelez-nous -
4 74008926 Liner, Door Appelez-nous -
5 74003645 Glass, Inner (2) In-Stock Immediately $ 162.53

6 W11233072 Screw   (Replaces: 74001530) In-Stock Immediately $ 12.62

7 74003647 Insulation,door Appelez-nous -
8 3601F380-51 Retainer, Insulation Special Order $ 25.83

9 74010546 Hinge, Door In-Stock Immediately $ 77.34

10 7760P232-60 Panel, Outer Door (stainless) Appelez-nous -
11 3801F918-51 Bracket, Glass Appelez-nous -
12 WP74009029 Gasket, Door   (Replaces: 74009029) In-Stock Immediately $ 145.22

13 WPY706189 Screw   (Replaces: Y706189) In-Stock Immediately $ 6.47

14 WP4159193 Screw   (Replaces: 7101P282-60) Special Order $ 4.29

15 7002P482-60 Tape, Foil (3``) Appelez-nous -
16 74011458 Bracket, Window(2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

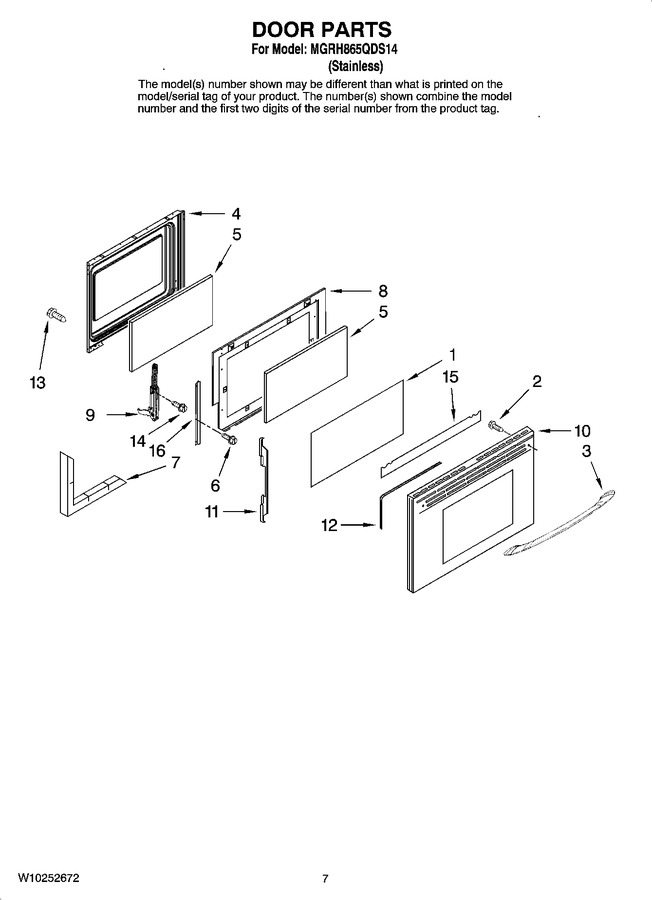

Diagram for MGRH865QDS14
