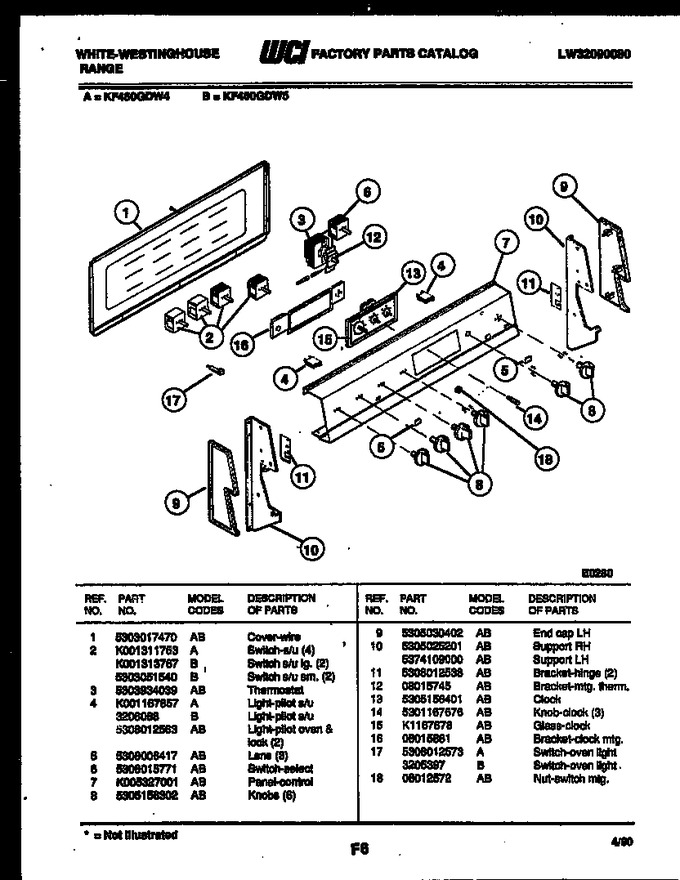

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | K001311753 | Switch-s/u (4) |
|
- | |||||
| 3 | 5303934039 | Thermostat |
|
- | |||||
| 4 | K001167857 | Light - Pilot S/u |
|
- | |||||
| 5 | 5308006417 | Lens (3) |
|
$ 19.06 | |||||
| 6 | 5308015771 | Switch, Select |
|
- | |||||
| 7 | K005327001 | Panel-control |
|
- | |||||
| 8 | 5305156302 | Knobs (6) |
|
- | |||||
| 9 | 5305030402 | End Cap Lh |
|
- | |||||
| 10 | 5305025201 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08015745 | Bracket-mtg. Therm. |
|
- | |||||
| 13 | 5305156401 | Clock |
|
- | |||||
| 14 | 5301167676 | Knob, Clock (3) |
|
- | |||||
| 15 | K1167678 | Glass-clock |
|
- | |||||
| 16 | 08015861 | Bracket - Clock Mtg |
|
- | |||||
| 17 | 5308012573 | Switch, Oven Light |
|
- | |||||
| 18 | 08012572 | Nut - Switch Mtg |
|
- | |||||
| 10A | 5374109000 | Support Lh |
|
- | |||||
| 4A | 5308012563 | Light-pilot Oven & Lock (2) |
|
- |
