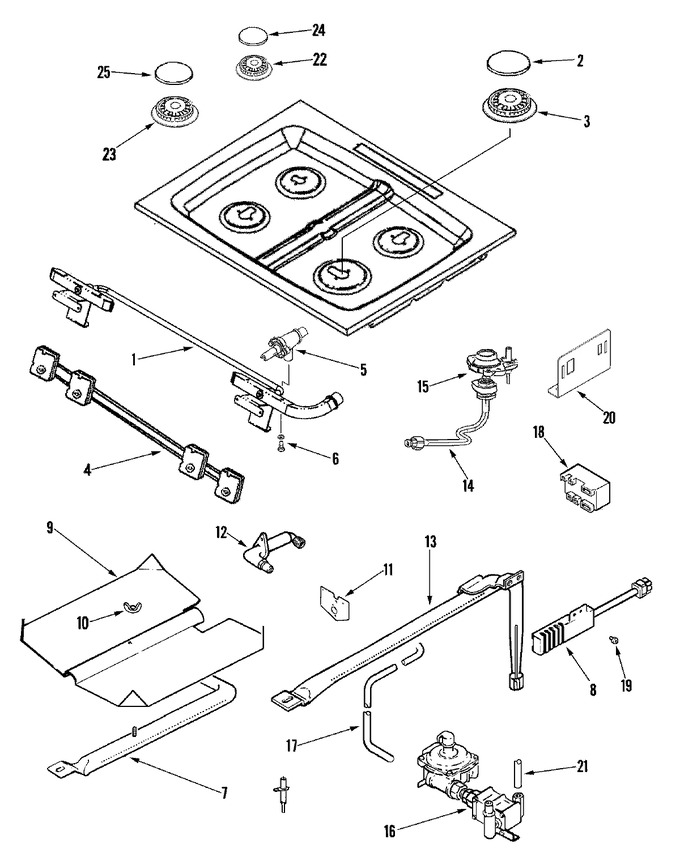

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010965		Manifold Pipe Asy.	10	Appelez-nous	-
2	74007414		Cap, Burner (lrg-blk)	10	Appelez-nous	-
3	WPW10406878		Base, Burner (16k)   (Replaces: 74007413)	10		Immediately	$ 92.12
3	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
4	74010915		Switch/harness Assembly	10			$ 118.77
5	74009451		Valve, 5k (mueller)	10	Appelez-nous	-
5	74009452		Valve, 9k (mueller)	10	Appelez-nous	-
5	12002270		Valve, 16k (mueller)   (Replaces: 74009453)	10			$ 258.73
6	74009416		Screw	10	Appelez-nous	-
7	74004076		Burner, Broil	10	Appelez-nous	-
8	74007498		Igniter, Oven	10		Immediately	$ 78.40
9	3601F217-47		Baffle, Broil Burner	10	Appelez-nous	-
10	7103P030-60		Nut, Wing	10			$ 6.37
11	74004307		Plate, Broil Fitting	10	Appelez-nous	-
12	WP74010901		Fitting, Broil   (Replaces: 74010901)	10			$ 75.29
13	3807F446-45		Support, Burner	10	Appelez-nous	-
13	74003960		Burner, Bake	10			$ 90.29
14	74011131		Tubing, Burner (rf)	10	Appelez-nous	-
14	74011133		Tubing, Burner (rr)	10	Appelez-nous	-
14	74011134		Tubing, Burner (lr)	10	Appelez-nous	-
14	74011132		Tubing, Burner (lf)	10	Appelez-nous	-
15	74010909		Holder, Orifice (9.2k)	10	Appelez-nous	-
15	WPW10110378		Igniter/bracket Asy   (Replaces: 74011755)	10		Immediately	$ 46.89
15	WPW10407680		Holder, Orifice (5k)   (Replaces: 74010908)	10			$ 98.65
15	WPW10407678		Holder, Orifice (16k)   (Replaces: 74010907)	10			$ 108.04
16	W10130932		Valve/regulator Asy	10		Immediately	$ 334.23
17	74004408		Tubing (3/8``)	10	Appelez-nous	-
18	8215557		Module, Spark (4+0)	17		Immediately	$ 124.99
18	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
18	WP7431P064-60		Module, Spark (4+0)   (Replaces: 7431P064-60)	19			$ 278.09
19	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
20	74007020		Support, Spark Module	10	Appelez-nous	-
20	3807F752-45		Support, Spark Module	17			$ 27.55
21	74010944		Tubing, Supply	10	Appelez-nous	-
22	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
22	WPW10406243		Base, Burner (5k)   (Replaces: 74007411)	10		Immediately	$ 33.50
23	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
23	WPW10406797		Base, Burner (lrg/blk)   (Replaces: 74007698)	10			$ 79.64
24	WP3191898		Cap, Burner (smr-blk)   (Replaces: 74007416)	10			$ 60.86
25	WP74007925		Cap, Burner (med-blk)   (Replaces: 74007925)	10			$ 86.81
