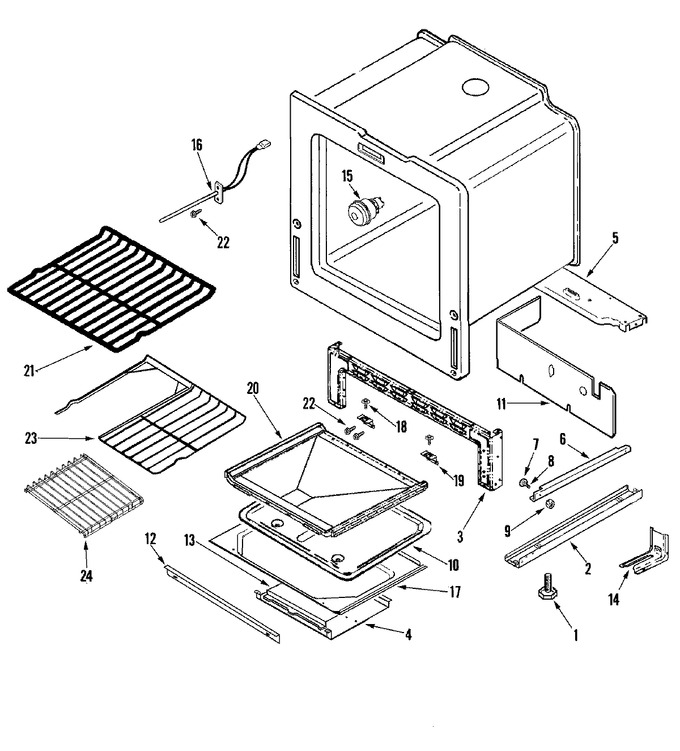

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74010805		Screw, Leveling Leg   (Replaces: 74010805)	10			$ 6.47
2	4020W035-80		Bottom, Pedestal   (Replaces: 74010899)	10			$ 101.54
3	74010882		Pedestal, Front	10	Appelez-nous	-
4	74006591		Shield, Warming Drawer	10	Appelez-nous	-
5	74007129		Support, Valve Regulator	10			$ 9.81
6	74003565		Runner, Drawer	10	Appelez-nous	-
7	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
8	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
9	74005230		Nut, Lock (8-32)	10			$ 12.02
10	74004465		Pan, Bake Burner	10	Appelez-nous	-
11	74005465		Cover, Valve/regulator	10	Appelez-nous	-
12	74001219		Baffle, Oven Front	10	Appelez-nous	-
13	74006574		Shield, Heat Pouch	10	Appelez-nous	-
14	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
15	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
15	WP7407P182-60		Lamp Assembly   (Replaces: 74010885)	10		Immediately	$ 66.10
16	12001655		Sensor, Oven (short)   (Replaces: 74004944)	10		Immediately	$ 41.01
17	74009480		Retainer, Bottom Insulation	10	Appelez-nous	-
17	74010986		Insulation, Oven Bottom	10	Appelez-nous	-
18	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
19	74010812		Support, Oven Bottom	10	Appelez-nous	-
20	WP2205F054-19		Bottom, Oven   (Replaces: 74010948)	10			$ 663.49
21	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
22	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	10			$ 6.47
23	74009589		Rack, Create A Space Half 30``	10	Appelez-nous	-
24	74009587		Insert, Half Rack 30``	10			$ 45.11
