SELECT A DIAGRAM

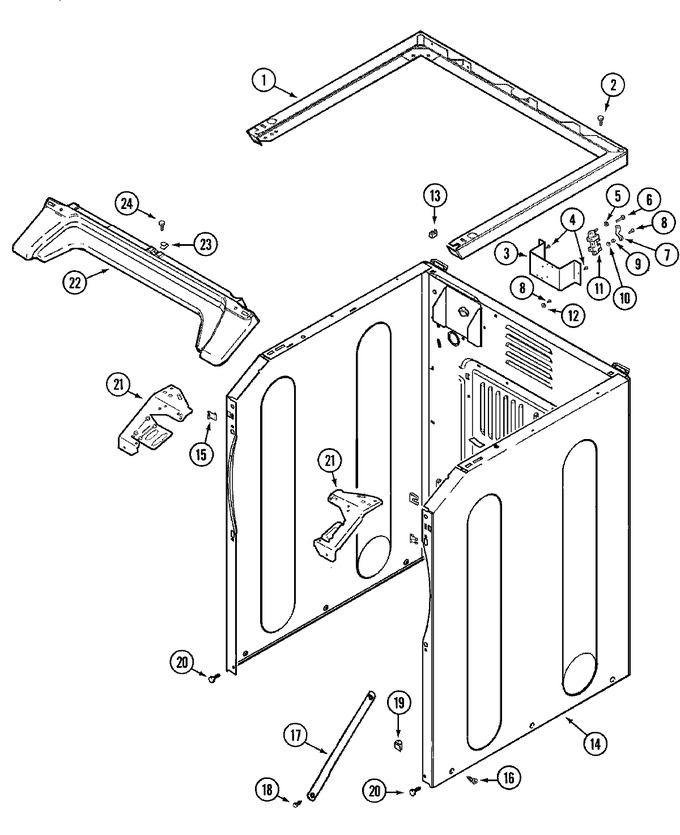

01 - Cabinet-front (lower)


02 - Cabinet-rear


03 - Door (lower)


04 - Heater


05 - Motor Drive


06 - Tumbler


07 - Wiring Information (elec)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002005		Support (wht)	10	Appelez-nous	-
2	22001883		Screw	10	Appelez-nous	-
3	33001826		Bracket, Terminal Block----na	10	Appelez-nous	-
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	Y311270		Washer, Terminal Block	10			$ 8.75
6	W11164114		Screw, No.10-24 X 3/4 Inch   (Replaces: Y312209)	10			$ 3.76
7	Y312184		Strap, Ground	10	Appelez-nous	-
8	W10850756		Screw----na   (Replaces: 33001245)	10			$ 6.98
9	WP112432		Nut, Terminal Block   (Replaces: 311484)	10			$ 7.16
10	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	10			$ 7.25
11	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
12	313363		Washer	10	Appelez-nous	-
13	WP22001502		Fastener, U-nut   (Replaces: 22001502)	10			$ 8.26
14	33001843		Cabinet (wht)	10	Appelez-nous	-
15	22002049		Clip	10			$ 8.40
16	213007		Screw, Cabinet	10			$ 10.99
17	22002259		Brace, Cross	10	Appelez-nous	-
18	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
19	Y310376		Clip, Wire Harness	10	Appelez-nous	-
20	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
21	33002010		Bracket, Corner (rt)	10	Appelez-nous	-
21	33002009		Bracket, Corner (lt)	10	Appelez-nous	-
22	33002011		Cover, Access (wht)	10	Appelez-nous	-
23	33002013		Fastener Clip, Access Cover	10	Appelez-nous	-
24	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
25	33002088		Wire Harness, Main (lwr)	10	Appelez-nous	-
26	33001989		Retainer, Wire	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
