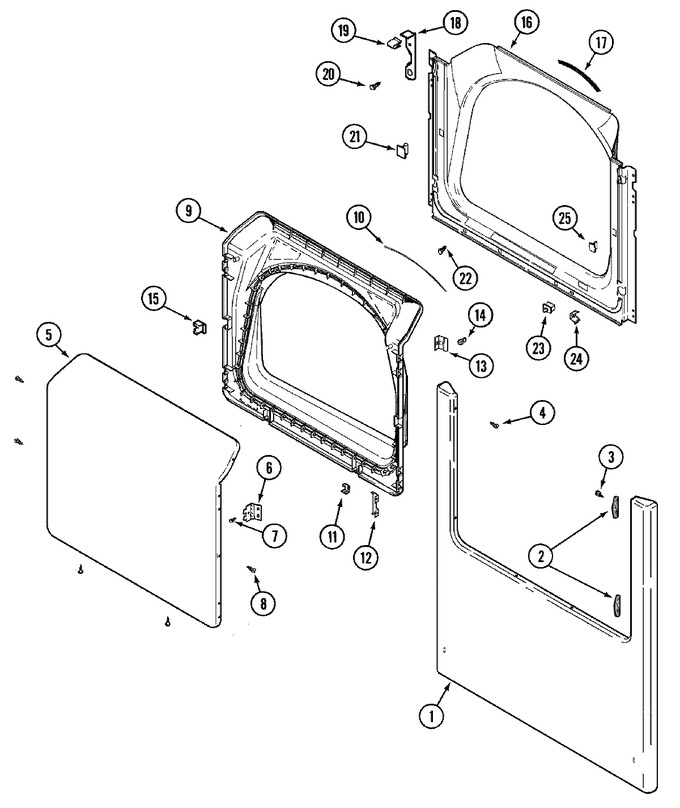

01 - Cabinet-front (lower)
02 - Cabinet-rear
03 - Door (lower)
04 - Heater
05 - Motor Drive
06 - Tumbler
07 - Wiring Information (elec)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002241 | Panel, Front (wht) | 10 |
|
- | ||||
| 2 | 33001764 | Cover, Hinge Hole (wht) | 10 |
|
$ 36.41 | ||||
| 3 | WP33001787 | Screw (Replaces: 33001846) | 10 |
|
$ 10.45 | ||||
| 4 | 22002243 | Screw | 10 |
|
- | ||||
| 5 | 22001979 | Door, Outer (wht-w/damper) | 10 |
|
- | ||||
| 6 | WP33001759 | Hinge, Door (Replaces: 33001759) | 10 |
|
$ 69.86 | ||||
| 7 | WP98006631 | Screw (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 8 | 22002063 | Screw No.8-18ab Wafer Hd | 10 |
|
$ 5.48 | ||||
| 9 | 33001750 | Door, Inner/ W Seal (wht) | 10 |
|
$ 75.37 | ||||
| 10 | WP33002094 | Seal, Door (Replaces: 33002094) | 10 |
|
Immediately | $ 113.69 | |||
| 11 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 12 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 13 | WP33001793 | Bracket, Strike (Replaces: 33001793) | 10 |
|
$ 7.43 | ||||
| 14 | 33001761 | Strike, Door (male) | 10 |
|
$ 5.84 | ||||
| 15 | 33001763 | Plug, Inner Door | 10 |
|
$ 6.90 | ||||
| 16 | 33001778 | Shroud (wht) | 10 |
|
- | ||||
| 17 | 33001767 | Seal, Shroud | 10 |
|
$ 25.05 | ||||
| 18 | 22002991 | Kit, Access Cover Hook | 10 |
|
- | ||||
| 19 | 33002037 | Fastener, Access Cover Hook | 10 |
|
- | ||||
| 20 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 21 | 306436 | Catch, Door (w/plug) (Replaces: 33001791) | 10 |
|
Immediately | $ 10.17 | |||
| 22 | 33001768 | Screw, Shroud | 10 |
|
- | ||||
| 23 | 33002239 | Switch, Door | 10 |
|
$ 23.77 | ||||
| 24 | 33001760 | Bracket, Hinge | 10 |
|
- | ||||
| 25 | LA-1003 | Catch, Door (female) (Replaces: Y304578) | 10 |
|
Immediately | $ 24.51 |
