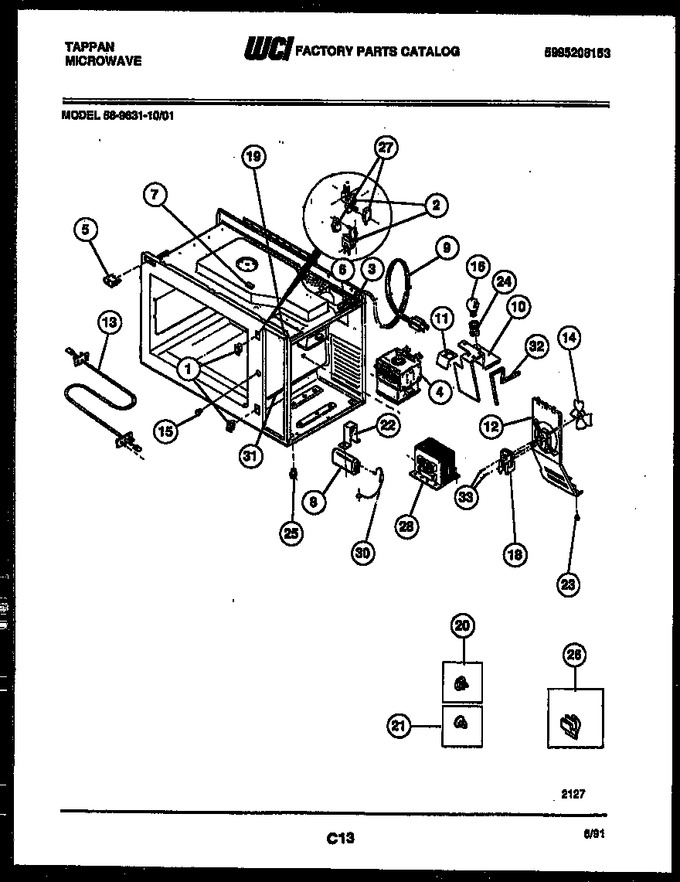

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212767		Bezel Latch (2)		Appelez-nous	-
2	5303011556		Bracket-switch (2)		Appelez-nous	-
3	5303212769		Bushing-strain Relief/fuse Holder		Appelez-nous	-
4	5303206781		Magnetron		Appelez-nous	-
5	5303201602		Switch-monitor		Appelez-nous	-
6	5303011670		Fuse		Appelez-nous	-
7	5308037724		Spacer		Appelez-nous	-
8	5303269608		Capacitor		Appelez-nous	-
9	5303212774		Cord-power 120v		Appelez-nous	-
10	5303269831		Duct-air		Appelez-nous	-
11	5303269832		Duct-air		Appelez-nous	-
12	5303269833		Duct-air, Fan		Appelez-nous	-
13	5303212785		Element-browner		Appelez-nous	-
14	5303269834		Blade-fan		Appelez-nous	-
15	5308037644		Grommet-door		Appelez-nous	-
16	5303212801		Lamp-120v				$ 53.13
18	5303922053		Motor-fan 120v-(fan Duct And Fan Blade Go To .8 Microwav		Appelez-nous	-
19	5303212803		Nut, Fan Duct				$ 2.10
20	5303201365		Plug-button (probe)		Appelez-nous	-
21	5308037665		Plug-button Tray (2)		Appelez-nous	-
22	5303013771		Clamp - Capacitor		Appelez-nous	-
23	5303269846		Rivet-duct-air-fan (2)		Appelez-nous	-
24	5303212810		Socket-lamp		Appelez-nous	-
25	5303014097		Spacer, Foot, (4)		Appelez-nous	-
26	5303014221		Support Rack (8)		Appelez-nous	-
27	5303203636		Switch, Interlock		Appelez-nous	-
28	5303212811		Transformer, 120v		Appelez-nous	-
30	5303269837		Harness-diode		Appelez-nous	-
31	5303212845		Tape-foam Seal Cut To Size		Appelez-nous	-
32	5303017864		Tape-foam Seal Cut To Size		Appelez-nous	-
33	5308014502		Screw-fan Motor (2)		Appelez-nous	-
*51447	5303013273		Nut-fan Motor (2)		Appelez-nous	-
*51447	5303013944		Screw-transformer (2)		Appelez-nous	-
*51447	5303273296		Harness-main		Appelez-nous	-
*51447	5303274084		Harness-browner		Appelez-nous	-
32A	5303017865		Tape-foam Seal-wrapper-right Front Cut To Size (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
