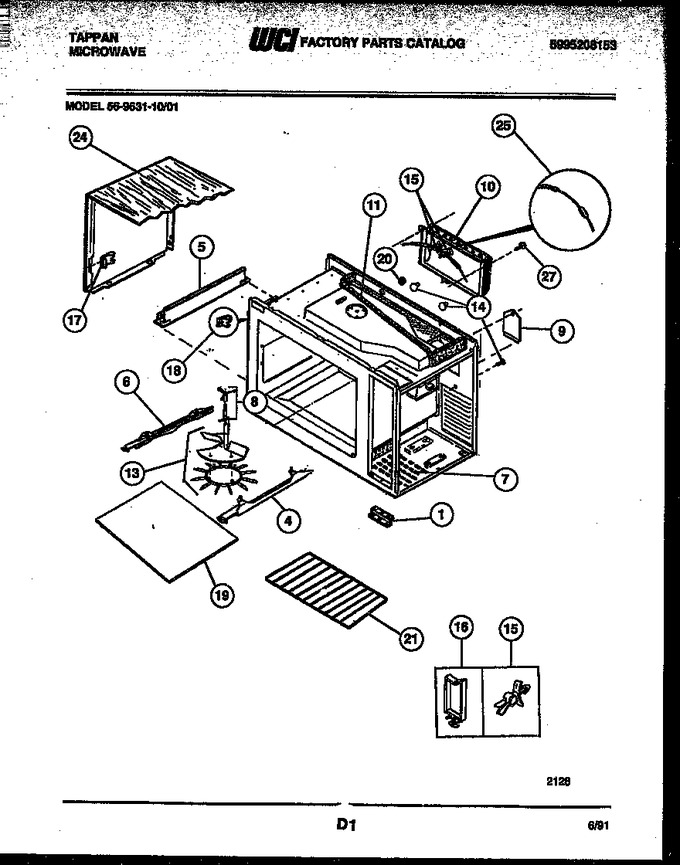

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270384		Bracket-control Panel Support		Appelez-nous	-
4	5303272824		Channel-stirrer Glass Support-rh		Appelez-nous	-
5	5303272823		Channel-base-lh		Appelez-nous	-
6	5303011776		Channel-stirrer Glass Support-lh		Appelez-nous	-
7	5303269830		Channel-base-rh		Appelez-nous	-
8	5303922010		Collar-stirrer-(includes Support, Collar And Washer)		Appelez-nous	-
9	5303212775		Cover-light		Appelez-nous	-
10	5303269958		Duct-air, Exhaust		Appelez-nous	-
11	5308037640		Seal-foam		Appelez-nous	-
12	5303269835		Fan-stirrer		Appelez-nous	-
13	5303274930		Fan-air Assy		Appelez-nous	-
14	5303091555		Plug Button-white (3)		Appelez-nous	-
15	5303212788		Support-thermal Protector (2)		Appelez-nous	-
16	5308037677		Clip, Wires, (3)		Appelez-nous	-
17	5303012322		Clip, Wrapper, (2)		Appelez-nous	-
18	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
19	5303012681		Cover-glass Stirrer		Appelez-nous	-
20	5303212795		Grommet, Split		Appelez-nous	-
21	5303206085		Rack-oven		Appelez-nous	-
24	5303269842		Wrapper-wood Grain		Appelez-nous	-
25	5303212800		Harness-fire Protector		Appelez-nous	-
27	5303271024		Screw-tamper Proof (2)		Appelez-nous	-
*51449	5303270946		Duct-cavity Foam-internal-fan Stirrer Area		Appelez-nous	-
*51450	5303269841		Shield Oven Light-mylar		Appelez-nous	-
*51450	5303273263		Screw-wrapper		Appelez-nous	-
