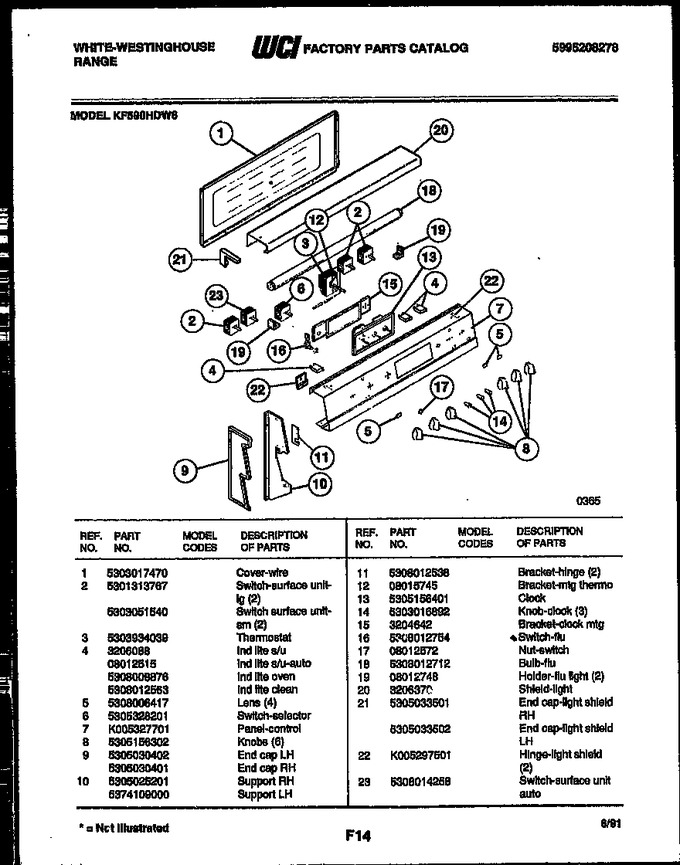

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	5301313767		Switch Surface Unit Lg. (2)		Appelez-nous	-
3	5303934039		Thermostat		Appelez-nous	-
4	3206088		Ind Lite S/u		Appelez-nous	-
5	5308006417		Lens (4)				$ 19.06
6	5305328201		Switch-selector		Appelez-nous	-
7	K005327701		Panel-control		Appelez-nous	-
8	5305156302		Knobs (6)		Appelez-nous	-
9	5305030402		End Cap Lh		Appelez-nous	-
10	5305025201		Support Rh		Appelez-nous	-
11	5308012538		Bracket, Hinge (2)		Appelez-nous	-
12	08015745		Bracket-mtg Thermo		Appelez-nous	-
13	5305156401		Clock		Appelez-nous	-
14	5303016892		Knob, Clock (3)		Appelez-nous	-
15	3204642		Bracket-clock Mtg		Appelez-nous	-
16	5308012754		Switch-flu		Appelez-nous	-
17	08012572		Nut-switch		Appelez-nous	-
18	5308012712		Bulb-flu		Appelez-nous	-
19	08012748		Holder-flu Light (2)		Appelez-nous	-
20	3206370		Shield-light		Appelez-nous	-
21	5305033501		End Cap-light Shield Rh		Appelez-nous	-
22	K005297501		Hinge-light Shield (2)		Appelez-nous	-
23	5308014258		Switch-surface Unit Auto		Appelez-nous	-
10A	5374109000		Support Lh		Appelez-nous	-
21A	5305033502		End Cap-light Shield Lh		Appelez-nous	-
2A	5303051540		Switch-surface Unit Sm (2)		Appelez-nous	-
4A	08012515		Ind Lite S/u-auto		Appelez-nous	-
4B	5308008876		Ind Lite Oven		Appelez-nous	-
4C	5308012563		Ind Lite Clean		Appelez-nous	-
9A	5305030401		End Cap Rh		Appelez-nous	-
