View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

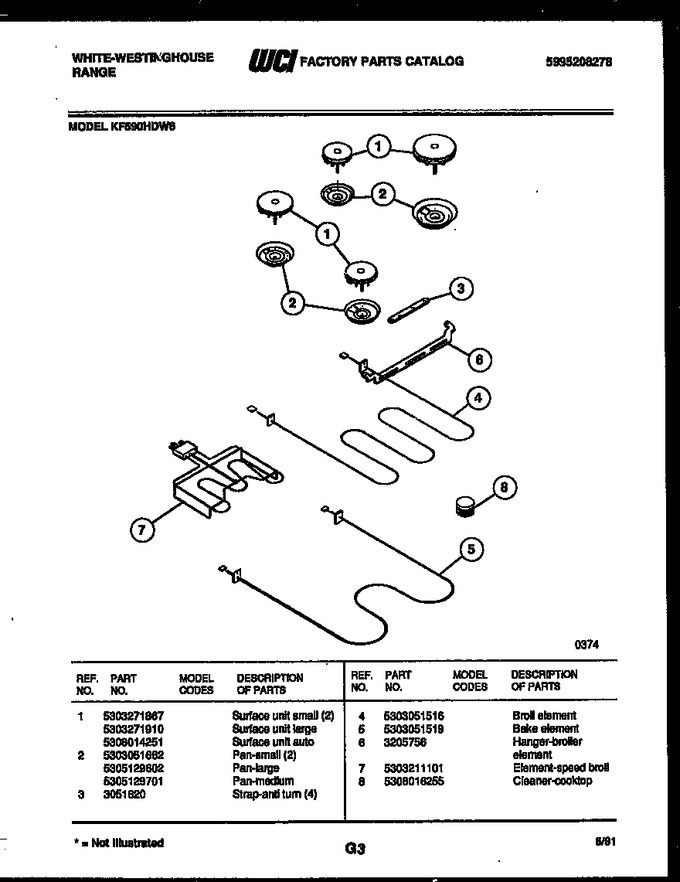

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271867 | Surface Unit - Small (2) |
|
- | |||||
| 2 | 5303051662 | Pan-small (2) |
|
- | |||||
| 3 | 3051620 | Strap, Anti Turn (4) |
|
- | |||||
| 4 | 5303051516 | Broil Element |
|
$ 189.23 | |||||
| 5 | 5303051519 | Bake Element |
|
Immediately | $ 44.70 | ||||
| 6 | 3205756 | Hanger-broiler Element |
|
- | |||||
| 7 | 5303211101 | Element-speed Broil |
|
- | |||||
| 8 | 5308016255 | Cleaner-cooktop |
|
$ 38.85 | |||||
| 1A | 5303271910 | Surface Unit - Large |
|
- | |||||
| 1B | 5308014251 | Surface Unit, Auto. |
|
- | |||||
| 2A | 5305129602 | Pan, Large |
|
- | |||||
| 2B | 5305129701 | Pan-medium |
|
- |
