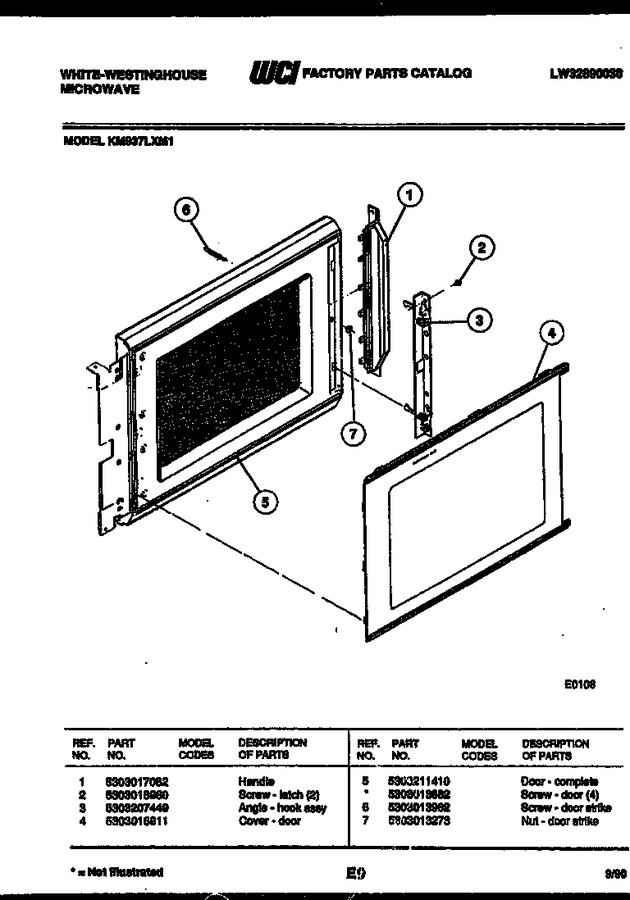

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017082 | Handle |
|
- | |||||
| 2 | 5303013960 | Screw-latch (2) |
|
- | |||||
| 3 | 5303207449 | Angle Hook Assy |
|
- | |||||
| 4 | 5303016911 | Cover-door |
|
- | |||||
| 5 | 5303211410 | Door-complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Nut - Door Strike |
|
- | |||||
| 5A | 5303013882 | Screw-door (4) |
|
- |
