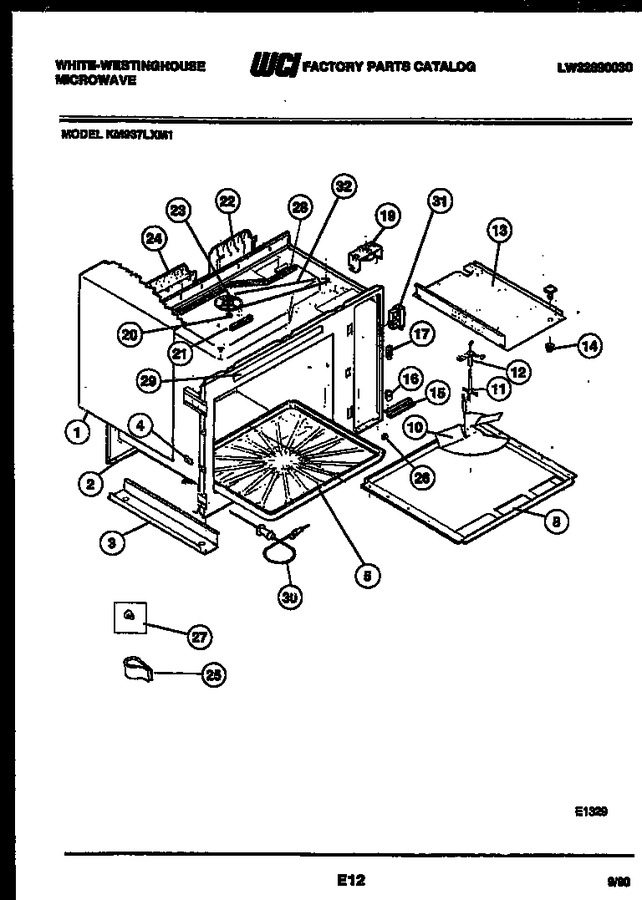

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303203254		Wrapper		Appelez-nous	-
3	5303011773		Channel Base, Lh		Appelez-nous	-
4	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
5	5303011698		Glass Tray		Appelez-nous	-
8	5303200554		Cover Stirrer		Appelez-nous	-
10	5303012284		Fan-stirrer		Appelez-nous	-
11	5303202875		Support-stirrer		Appelez-nous	-
12	5303011826		Collar-stirrer		Appelez-nous	-
13	5303210624		Channel-base-rh		Appelez-nous	-
14	5303014097		Foot (4)		Appelez-nous	-
15	5303011555		Bracket		Appelez-nous	-
16	5308037644		Grommet-door		Appelez-nous	-
17	5303200551		Bezel Latch-white (2)		Appelez-nous	-
19	5303091482		Motor Stirrer W/ Belt		Appelez-nous	-
20	5303014620		Washer-pulley		Appelez-nous	-
21	53008014510		Spacer - Wrapper		Appelez-nous	-
22	5303012196		Duct Air (mag)		Appelez-nous	-
23	5303013647		Pulley-stirrer		Appelez-nous	-
24	5303201371		Duct-air Cavity		Appelez-nous	-
25	5303012322		Wrapper - Clip (2)		Appelez-nous	-
26	5303013283		Nut		Appelez-nous	-
27	5308037665		Plug-button Tray (2)		Appelez-nous	-
28	5308037640		Seal Air Duct		Appelez-nous	-
29	5303018849		Label Cooking Guide		Appelez-nous	-
30	5303011684		Probe		Appelez-nous	-
31	5303013702		Receptacle Probe		Appelez-nous	-
32	5303011495		Belt				$ 23.31
*34816	5303013807		Rivet-cover Stirrer (8)		Appelez-nous	-
*34816	5303203124		Paint-white Touch Up		Appelez-nous	-
*34816	5303013626		Plug-button (2)		Appelez-nous	-
*34816	5308037664		Plug-button (8)		Appelez-nous	-
*34816	5303091100		Screw-wrapper		Appelez-nous	-
*34816	5303011685		Shield-oven Light		Appelez-nous	-
*34816	5303203125		Paint-white Spray		Appelez-nous	-
