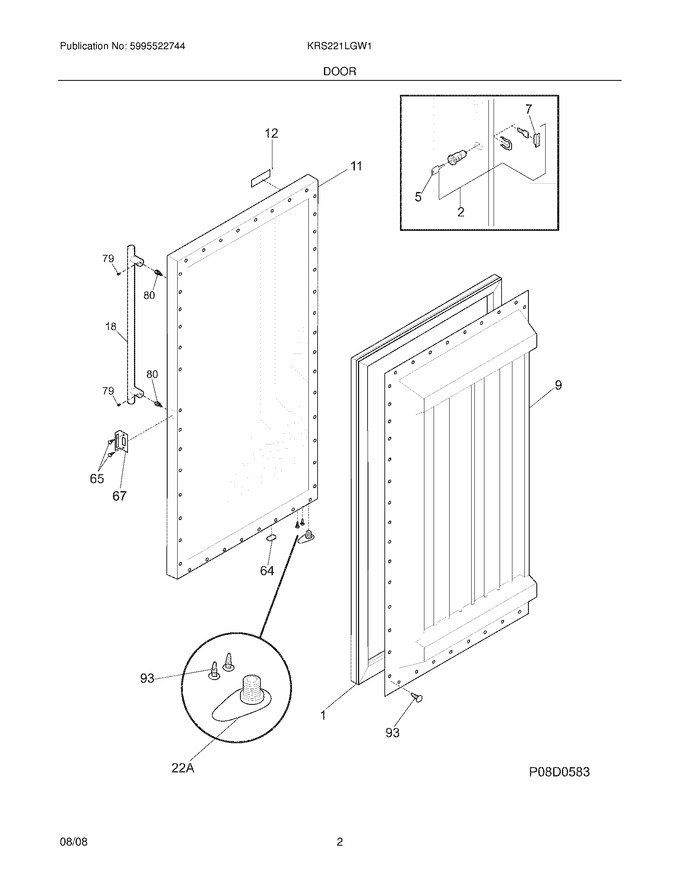

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506125		Gasket-door,gray   (Replaces: 216522315)				$ 232.02
7	216468700		Bezel-lock				$ 35.28
9	297071000		Panel-inner Door				$ 200.57
11	216450105		Panel-outer Door		Appelez-nous	-
12	297146600		Nameplate,commercial		Appelez-nous	-
18	297141900		Handle		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base   (Replaces: 216403701)				$ 58.12
65	216423501		Screw-retainer		Appelez-nous	-
67	216423000		Retainer-lock		Appelez-nous	-
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
22A	216335400		Bearing-hinge				$ 67.73
F2	216362700		Lock Assy				$ 90.30
F5	216362800		Key, Lock				$ 5.79
NI	216923003		Plug Button,1/4`` ,grey ,(2)				$ 4.41
NI	297167000		Screw Driver		Appelez-nous	-
NI	297168700		Instructions,handle		Appelez-nous	-
