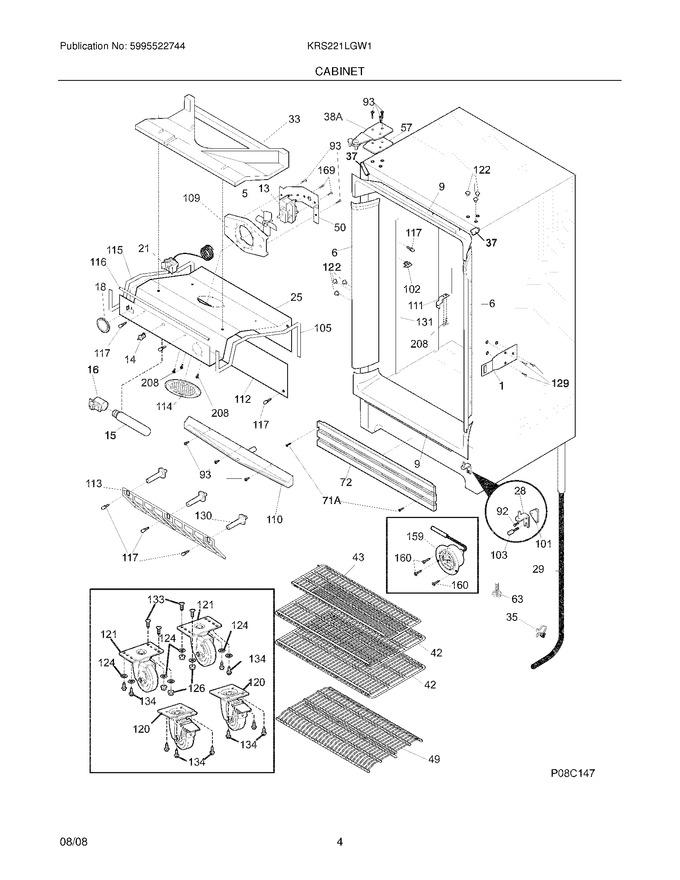

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297222500		Lock-catch		Appelez-nous	-
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp,blue   (Replaces: 216518101)			Immediately	$ 73.06
16	297139500		Socket,light/lamp,25 W   (Replaces: 216817601)				$ 18.08
18	216591506		Knob,temp Control   (Replaces: 216591501)				$ 29.06
25	216659103		Cover-evaporator		Appelez-nous	-
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361901		Hose-drain				$ 93.14
33	216680900		Duct-air		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
42	216384000		Shelf-full Frame,wire ,(2)		Appelez-nous	-
43	216386200		Shelf-partial, Wire		Appelez-nous	-
49	216331800		Trivet		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
57	216335500		Spacer-hinge, Top		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297138900		Grille/kickplate		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,door Stop/hng   (Replaces: 216850900)				$ 13.46
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	297121900		Support Shelf			Immediately	$ 12.13
103	216336301		Standoff-base Panel		Appelez-nous	-
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
109	297014200		Venturi,blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297141400		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383600		Grate-air Intake		Appelez-nous	-
114	297014400		Cover-blower				$ 58.59
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	297206600		Caster-front,(2)				$ 72.66
121	297206500		Caster-rear,(2)				$ 73.40
122	216429601		Plug,white		Appelez-nous	-
124	216658501		Washer,(4)		Appelez-nous	-
126	216658601		Nut,lock ,5/16 Unc-3b				$ 9.19
129	216393301		Screw-lock Catch,one Way		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
131	297122000		Shelf-standard				$ 61.05
133	216658400		Bolt,caster ,5/16 Sq. Neck ,front		Appelez-nous	-
134	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
159	5304506337		Dial,thermometer   (Replaces: 297070201)				$ 174.95
160	297096100		Screw,no.6-20x.375 Ab ,stainless ,thermo Dial				$ 9.19
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
208	216504500		Screw, Ab, 8-18 X .500		Appelez-nous	-
21No.	216423900		Control-temperature		Appelez-nous	-
38A	297215900		Hinge-top,door Closer				$ 140.25
71A	216395801		Screw,1/4 20 X 1/2		Appelez-nous	-
F111	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
F13	297309000		Motor,fan ,115 V   (Replaces: 216914200)			Immediately	$ 55.32
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	5303311565		Clip-cable				$ 2.10
NI	297211400		Installation Instructions,casters		Appelez-nous	-
NI	297256300		Kit,hardware Caster				$ 68.47
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
NI	297001708		Insulation,drain Tube ,36``				$ 13.28
