Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303299383 Liner-oven Appelez-nous -
2 3204594 Switch - Thermal Cutout Appelez-nous -
3 08011171 Receptacle Appelez-nous -
4 3201908 Bulb Appelez-nous -
5 5304524341 Lens   (Replaces: 3201911) In-Stock Immediately $ 14.18

6 3204483 Retainer-lens Appelez-nous -
7 3019063 Retainer - Door (2) Appelez-nous -
8 5303299384 Frame, Oven Appelez-nous -
9 5303299270 Shield, Insulation Appelez-nous -
10 3205683 Vent - Tube Assembly Appelez-nous -
11 3016278 Support, Height (2) Appelez-nous -
12 3016324 Duct-oven Vent Appelez-nous -
13 3016326 Bracket-oven Vent Appelez-nous -
14 5303206735 Duct-oven Vent Pipe Appelez-nous -
18 3019056 Duct-oven Vent-cntr Appelez-nous -
19 3016275 Wrapper Appelez-nous -
20 3016281 Spring, Oven (2) Appelez-nous -
21 3019061 Cover-rear Appelez-nous -
22 5303016247 Element, Broil Special Order $ 223.97

23 318345216 Rack, Offset   (Replaces: 5303296873) Special Order $ 103.90

23 5303299271 Oven Shelf Appelez-nous -
24 318255101 Element, Bake   (Replaces: 3202440) Special Order $ 185.70

25 3016248 Support, Broil Element Appelez-nous -
26 3201631 Channel, Hinge Special Order $ 58.22

27 3016277 Wrapper, Base Appelez-nous -
28 3016273 Shield, Insulation Appelez-nous -
29 5303299253 Trim-base Appelez-nous -
30 5303275924 Switch - Oven Light Special Order $ 92.03

31 3019049 Trim-liner-rh Appelez-nous -
32 5303271106 Trim-cap Rh Appelez-nous -
33 5303284904 Trim-side-outer (2) Appelez-nous -
36 3202077 Rod-switch Appelez-nous -
37 5303208888 Probe-sensor Appelez-nous -
38 5303292159 Pan-broiler Appelez-nous -
39 3205234 Insert, Broiler Pan Appelez-nous -
40 3201632 Spacer, Oven (2) Appelez-nous -
41 3202384 Bracket - Switch Mtg Appelez-nous -
31A 3019050 Trim-liner-lh Appelez-nous -
32A 5303271107 Trim-cap Lh Appelez-nous -
33A 5303299252 Insulation (non-illustrated) Appelez-nous -
33B 3016274 Insulation - Back (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

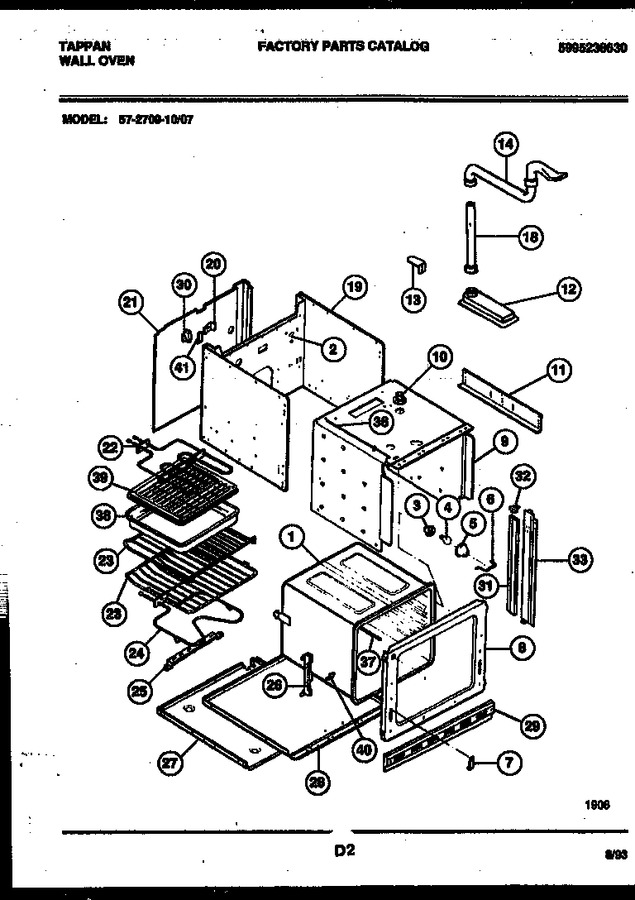

Diagram for 57-2709-00-07
