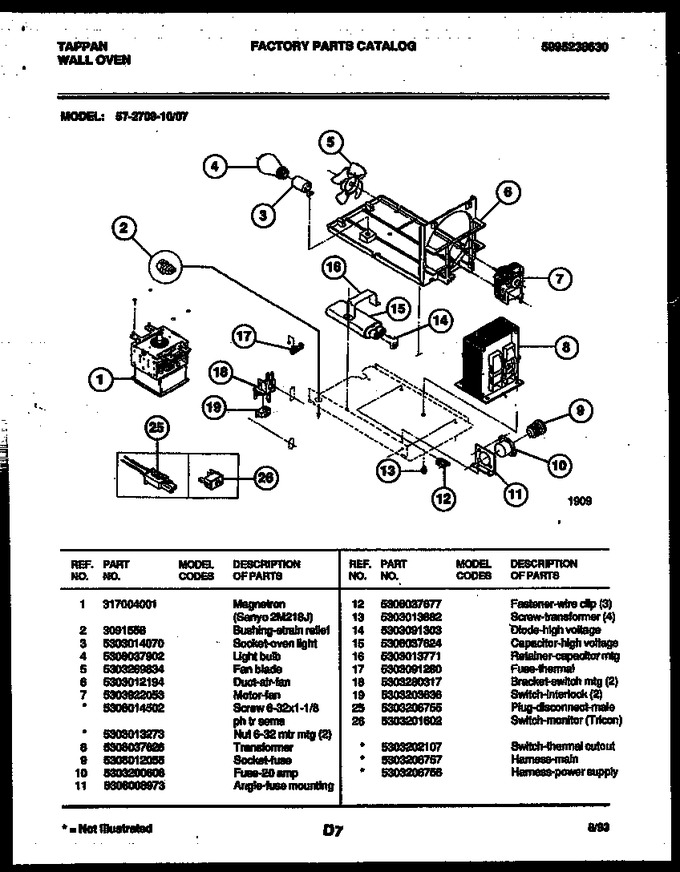

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 317004001 | Magnetron (sanyo 2m218j) |
|
- | |||||
| 2 | 3091558 | Bushing-strain Relief |
|
- | |||||
| 3 | 5303014070 | Socket-oven Light |
|
- | |||||
| 4 | 5308037902 | Light Bulb |
|
- | |||||
| 5 | 5303269834 | Fan Blade |
|
- | |||||
| 6 | 5303012194 | Duct-air (fan) |
|
- | |||||
| 7 | 5303922053 | Motor-fan |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308012055 | Socket-fuse |
|
- | |||||
| 10 | 5303200606 | Fuse 20 Amp. |
|
- | |||||
| 11 | 5308008973 | Angle-fuse Mounting |
|
- | |||||
| 12 | 5308037677 | Fastener-wire Clip (3) |
|
- | |||||
| 13 | 5303013882 | Screw-transformer (4) |
|
- | |||||
| 14 | 5303091303 | Diode High Voltage |
|
- | |||||
| 15 | 5308037624 | Capacitor-high Voltage |
|
- | |||||
| 16 | 5303013771 | Retainer-capacitor Mtg |
|
- | |||||
| 17 | 5303091280 | Fuse-thermal |
|
- | |||||
| 18 | 5303280317 | Bracket-switch Mtg (2) |
|
- | |||||
| 19 | 5303203636 | Switch, Interlock |
|
- | |||||
| 25 | 5303206755 | Plug-disconnect-male |
|
- | |||||
| 26 | 5303201602 | Switch-monitor (tricon) |
|
- | |||||
| *88122 | 5303206757 | Harness-main |
|
- | |||||
| *88122 | 5303202107 | Switch-thermal Cutout |
|
- | |||||
| *88122 | 5303206756 | Harness-power Supply |
|
- | |||||
| 7A | 5308014502 | Screw-6-32 X 1-1/8 Ph Tr Sems (non-illustrated) |
|
- | |||||
| 7B | 5303013273 | Nut-6-32 Mtr Mtg (2) (non-illustrated) |
|
- |
