SELECT A DIAGRAM

01 - Control Panel (upper)


02 - Cabinet-front (upper)


03 - Cabinet-front (lower)


04 - Door (upper)


05 - Door (lower)


06 - Cabinet-rear


07 - Tumbler


08 - Gas Valve


09 - Motor Drive


10 - Wiring Information (gas)

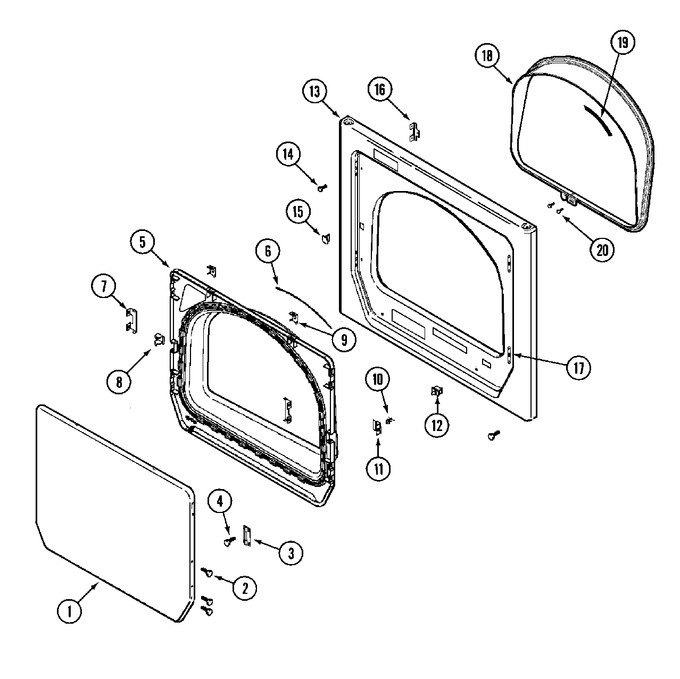

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002079		Door, Outer (wht)	10	Appelez-nous	-
002	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
003	33002017		Hinge, Door	10			$ 6.58
004	WP98006631		Screw, Hinge   (Replaces: 22002062)	10			$ 6.26
005	33002020		Door, Inner (wht)	10			$ 128.74
006	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
007	22002038		Clip, Door (double)	10	Appelez-nous	-
008	33001763		Plug, Inner Door	10			$ 6.90
008	33002111		Plug, Inner Door (short)	10	Appelez-nous	-
009	22002039		Clip, Inner Door	10			$ 8.15
010	33001761		Strike, Door (male)	10			$ 5.84
011	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
011	WP33001793		Bracket, Strike (short)   (Replaces: 33002110)	10			$ 7.43
012	33002239		Switch, Door	10			$ 23.77
013	33001711		Nameplate	10	Appelez-nous	-
013	33002051		Screw, Front Panel	10	Appelez-nous	-
013	33002081		Panel, Front (wht-upr)	10			$ 159.85
014	WP98008544		Panel, Fastener   (Replaces: 33001486)	10			$ 11.89
015	306436		Catch, Door (w/plug)   (Replaces: 33001791)	10		Immediately	$ 10.17
016	33002025		Twin Speednut	10	Appelez-nous	-
017	33001175		Cover, Hinge Hole (wht)	10	Appelez-nous	-
018	33002026		Extension, Tumbler Front	10	Appelez-nous	-
019	33001767		Seal, Shroud	10			$ 25.05
020	WP33002917		Screw, Tumbler Front Extension   (Replaces: 33001855)	10		Immediately	$ 6.90

    View Diagram in Separate Window       Print Part List
