SELECT A DIAGRAM

01 - Control Panel (upper)


02 - Cabinet-front (upper)


03 - Cabinet-front (lower)


04 - Door (upper)


05 - Door (lower)


06 - Cabinet-rear


07 - Tumbler

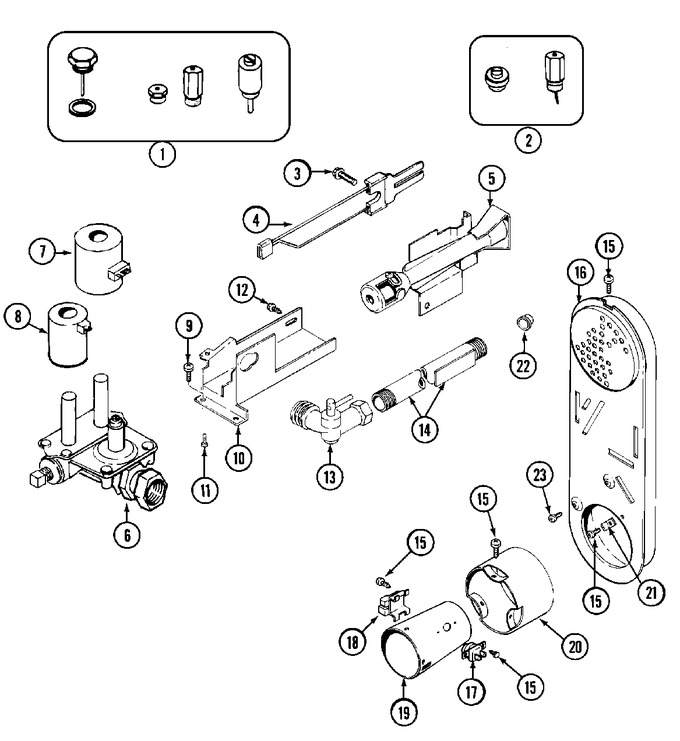

08 - Gas Valve


09 - Motor Drive


10 - Wiring Information (gas)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y308378		Conv Kit (natural To Lp) ----s	10	Appelez-nous	-
002	Y308377		Conversion Kit (lp To Natural)	10	Appelez-nous	-
003	304971		Screw, Igniter	10	Appelez-nous	-
004	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)	10		Immediately	$ 42.36
005	WP33002793		Burner Assy.   (Replaces: 33001247)	10			$ 161.35
006	307927		Valve, Gas (240v-50hz)	10			$ 215.29
006	33002056		Plug, Hole	10	Appelez-nous	-
007	58804A		Coil, Holding & Booster--w   (Replaces: 306106)	10		Immediately	$ 28.02
008	279834		Coil, Secondary--w   (Replaces: 306105)	10		Immediately	$ 29.57
009	Y313561		Screw, Gas Valve	10			$ 5.27
010	NLA		Bracket, Gas Valve (lwr)	10	Appelez-nous	-
011	WP90767		Screw, Gas Valve   (Replaces: 314082)	10		Immediately	$ 7.04
011	WP90767		Screw, Gas Valve   (Replaces: 314568)	10		Immediately	$ 7.04
012	W11573574		Screw, Gas Valve   (Replaces: 22001995)	10		Immediately	$ 12.62
013	306086		Valve, Angle Gas	10	Appelez-nous	-
014	33001735		Pipe & Bracket Assy.	10	Appelez-nous	-
015	WP90767		Screw, Duct   (Replaces: 211294)	10		Immediately	$ 7.04
016	33001810		Inlet Duct Assembly	10	Appelez-nous	-
017	WP303395		Thermostat, Hi-limit (gas)   (Replaces: 303395)	10		Immediately	$ 66.35
018	WP338906		Sensor, Radiant   (Replaces: Y303377)	10		Immediately	$ 46.72
019	33001946		Cone Assy., Combustion	10	Appelez-nous	-
020	NLA		Extention, Combustion Cone	10	Appelez-nous	-
021	Y312890		Retainer, Heater Chamber	10	Appelez-nous	-
022	33001693		Cap, Gas Pipe	10	Appelez-nous	-
023	WP489128		Screw, Duct   (Replaces: 22001996)	10			$ 9.79

    View Diagram in Separate Window       Print Part List
