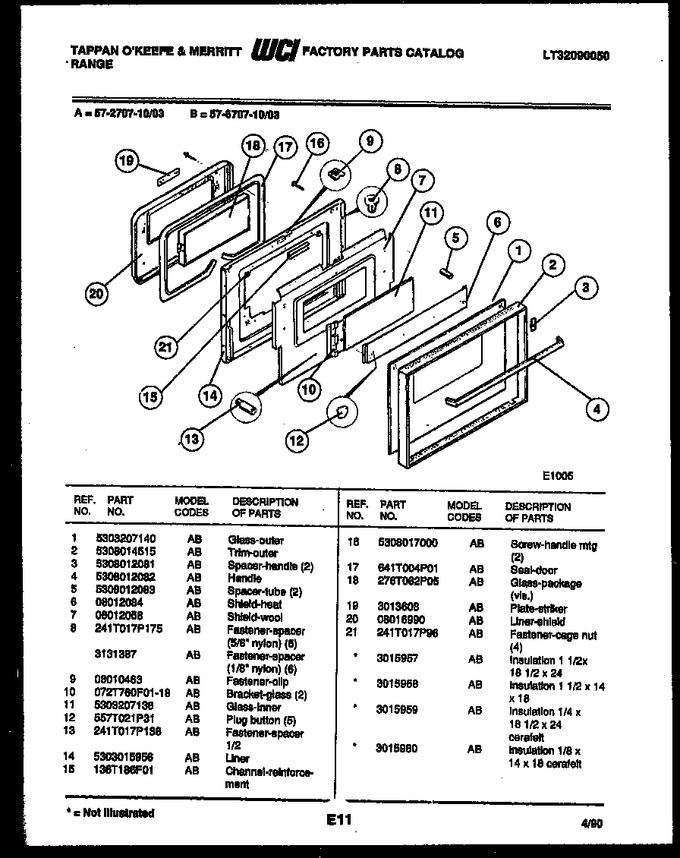

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207140		Glass-outer		Appelez-nous	-
2	5308014515		Trim-outer		Appelez-nous	-
3	5308012081		Spacer-handle (2)		Appelez-nous	-
4	5308012082		Handle		Appelez-nous	-
5	5308012083		Spacer-tube (2)		Appelez-nous	-
6	08012084		Shield-heat		Appelez-nous	-
7	08012058		Shield-wool		Appelez-nous	-
8	241T017P175		Fastener-spacer (5/8`` Nylon) (5)		Appelez-nous	-
9	08010463		Fastener-clip		Appelez-nous	-
10	072T760F01-18		Bracket-glass (2)		Appelez-nous	-
11	5303207138		Glass-inner		Appelez-nous	-
12	557T021P31		Plug Button (5)		Appelez-nous	-
13	241T017P138		Fastener-spacer 1/2		Appelez-nous	-
14	5303015956		Liner		Appelez-nous	-
15	136T186F01		Channel-reinforcement		Appelez-nous	-
16	5308017000		Screw-handle Mtg (2)		Appelez-nous	-
17	641T004P01		Seal-door		Appelez-nous	-
18	276T062P05		Glass-package (vis.)		Appelez-nous	-
19	3013608		Plate-striker		Appelez-nous	-
20	08016990		Liner-shield		Appelez-nous	-
21	241T017P96		Fastener-cage Nut (4)		Appelez-nous	-
*37113	3015958		Insulation 1 1/2 X 14 X 18		Appelez-nous	-
*37113	3015957		Insulation 1 1/2 X 18 1/2 X 24		Appelez-nous	-
*37114	3015959		Insulation 1/4 X 18 1/2 X 24 Cerafelt		Appelez-nous	-
*37114	3015960		Insulation 1/8 X 14 X 18 Cerafelt		Appelez-nous	-
8A	3131387		Fastener-spacer (1/8`` Nylon) (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
