Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 554T164F07-18 Plate-instrument Mtg. Appelez-nous -
2 241T017P44 Fastene-clock Mtg (4) Appelez-nous -
3 148T114P03 Clock Appelez-nous -
4 08010404 Knob-clock (3) Appelez-nous -
5 5308012030 Bezel-oven Lite Switch Appelez-nous -
6 358T169P17 Knob-thermostat Adj. Appelez-nous -
7 358T142P132 Knob-selector Switch 6 Pos. Appelez-nous -
8 277T163P59 Glass-control Panel Appelez-nous -
9 740T097F14 Trim-control Panel Ends (2) Appelez-nous -
10 3011428 Angle-control Panel Mtg. (2) Appelez-nous -
11 3014012 Shield-wire Appelez-nous -
12 697T038P05 Switch-selector 6 Pos. Appelez-nous -
13 720T058P01 Thermostat S/c Appelez-nous -
14 318T023P04 Indicator Lite (250v Red) Lock Appelez-nous -
15 318T023P01 Indicator Lite (125v Red) Oven & Clean (2) Appelez-nous -
16 695T164P19 Switch-oven Light Appelez-nous -
17 479T089P01 Hex Nut Switch Mtg Appelez-nous -
13A 636T096P23 Screw Select. Switch & Thermo Mtg. (4) (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

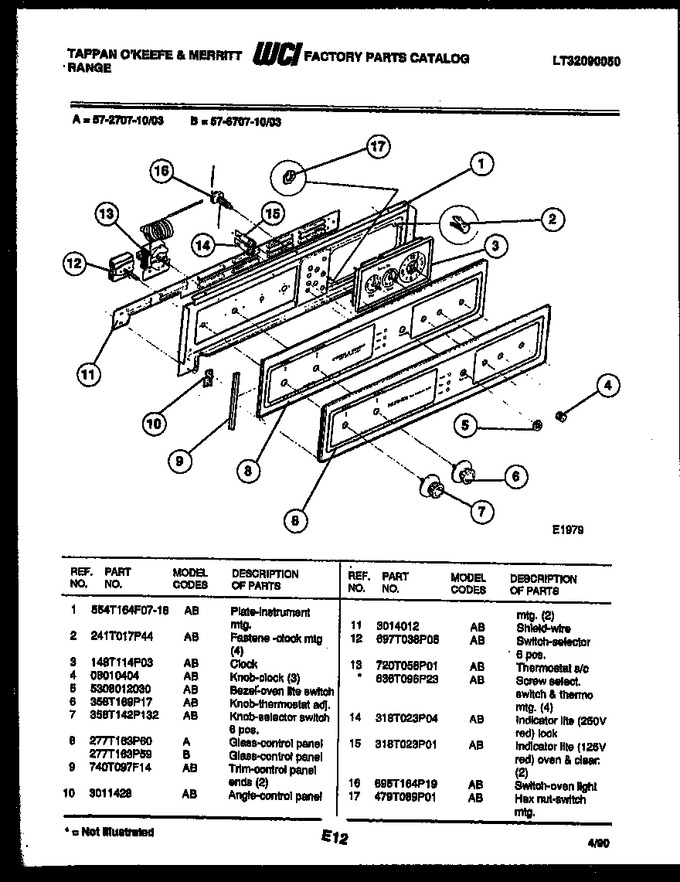

Diagram for 57-6707-00-03
