| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
12002022 |
 |
Lip Seal Service Assembly (Replaces: 12001478) |
10 |
|
Immediately |
$ 102.95 |
|
|
| 002 |
22002099 |
|
Spring, Tub |
10 |
|
|
$ 20.13 |
|
|
| 003 |
22003925 |
|
Spinner Support Assy As Pack |
10 |
Appelez-nous
|
- |
|
|
|
| 004 |
22002023 |
|
Washer, Plastic |
10 |
|
|
$ 8.21 |
|
|
| 005 |
22003549 |
|
Spinner Assy. (w/balance Ring) |
10 |
Appelez-nous
|
- |
|
|
|
| 006 |
22002021 |
|
Washer, Profile |
10 |
Appelez-nous
|
- |
|
|
|
| 007 |
22002020 |
 |
Washer, Spinner Support |
10 |
|
|
$ 28.18 |
|
|
| 008 |
WP2207454 |
 |
Nut, Spinner Attachment (Replaces: 22002122) |
10 |
|
|
$ 9.58 |
|
|
| 009 |
22001985 |
 |
Baffle, Drip (rear) |
10 |
|
|
$ 61.16 |
|
|
| 010 |
22002009 |
 |
Grommet, Baffle (rear) |
10 |
|
|
$ 20.18 |
|
|
| 011 |
22001999 |
 |
Grommet, Baffle (frt) |
10 |
|
|
$ 22.80 |
|
|
| 012 |
22002325 |
|
Screw, Baffle (rear) |
10 |
Appelez-nous
|
- |
|
|
|
| 013 |
22001986 |
 |
Baffle, Drip (front) |
10 |
|
|
$ 53.83 |
|
|
| 014 |
22002059 |
|
Screw, Baffle (front) |
10 |
|
|
$ 5.33 |
|
|
| 015 |
WP596669 |
 |
Clamp, Hose Double Wire (Replaces: 22003073) |
10 |
|
Immediately |
$ 7.56 |
|
|
| 016 |
22002077 |
|
Seal, Tub Cover |
10 |
|
|
$ 32.50 |
|
|
| 017 |
22002050 |
|
Clip, Tub To Cover |
10 |
|
|
$ 8.16 |
|
|
| 018 |
22003710 |
|
Sump Cap W/ Labyrinth Feature |
10 |
|
|
$ 34.38 |
|
|
| 018 |
22004254 |
|
Cover, Tub W/seal&caps Aspk |
26 |
Appelez-nous
|
- |
|
|
|
| 018 |
22003212 |
|
Cover, Tub (w/seal) (asp)--w |
10 |
|
|
$ 92.51 |
|
|
| 018 |
W11772394 |
|
Screw (Replaces: 22003263) |
10 |
|
Immediately |
$ 10.94 |
|
|
| 019 |
12001772 |
|
Kit, Door Boot W/drain |
10 |
Appelez-nous
|
- |
|
|
|
| 020 |
22002164 |
|
Cable, Door |
10 |
Appelez-nous
|
- |
|
|
|
| 021 |
WP22003074 |
 |
Guard, Hose (Replaces: 22003074) |
10 |
|
|
$ 6.95 |
|
|
| 022 |
WP596669 |
|
Clamp, Hose Double Wire (Replaces: Y22003072) |
10 |
|
Immediately |
$ 7.56 |
|
|
| 023 |
WP22004477 |
 |
Door Boot Drain Hose (Replaces: 22003071) |
10 |
|
|
$ 66.20 |
|
|

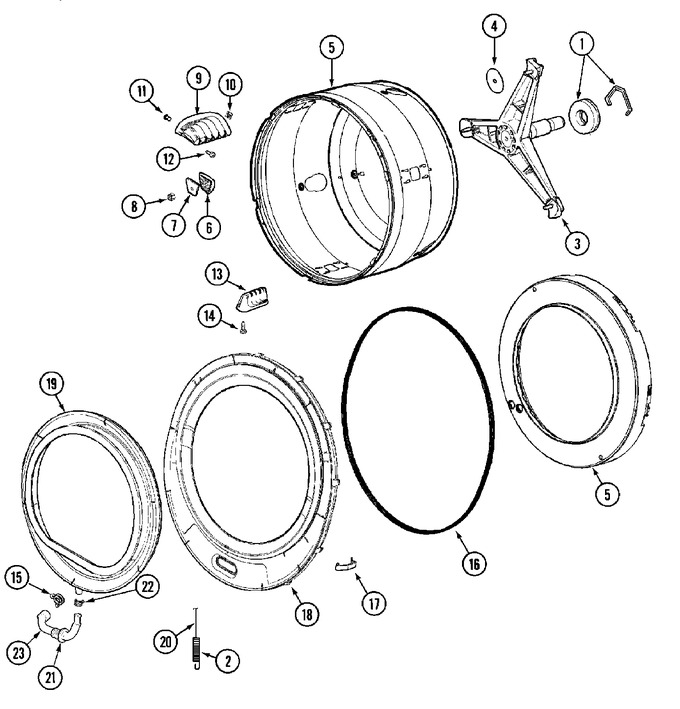

View Diagram in Separate Window
