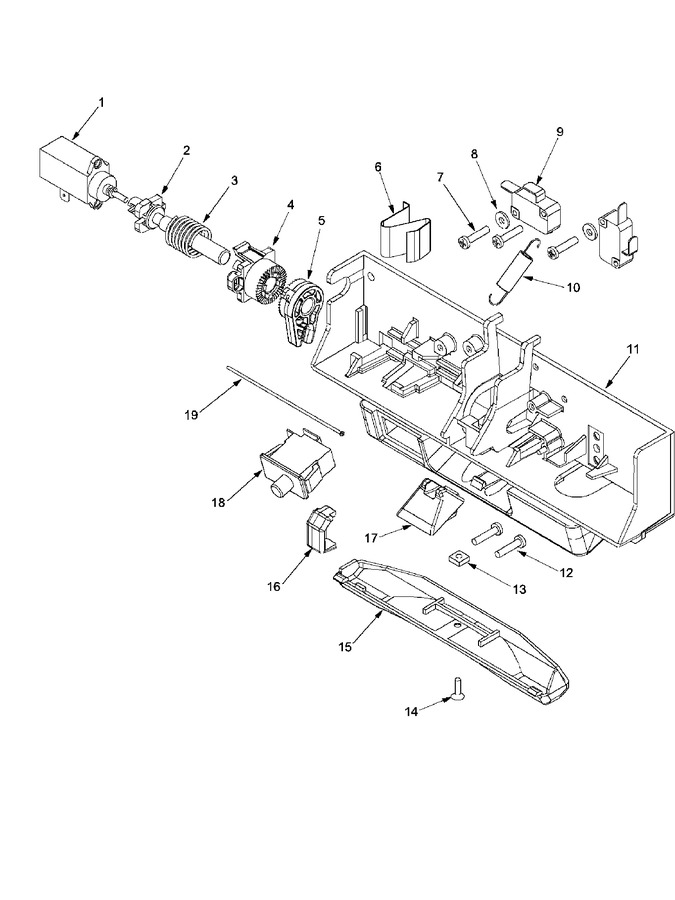

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	12002535		Motor, Wax   (Replaces: 22002119)	10		Immediately	$ 20.30
002	22003718		Axle, Latch	10			$ 5.84
003	22003721		Spring, Axle / Latch	10			$ 6.56
004	22003715		Sliding Gear, Latch	10			$ 5.84
005	22003716		Rotating Gear, Latch	10			$ 5.51
006	22003717		Spring, Latch	10			$ 0.80
007	22001352		Screw, Check Switch	10	Appelez-nous	-
008	22002165		Washer, Door Lock Switch	10	Appelez-nous	-
009	33002782		Switch, Door Lock	10	Appelez-nous	-
010	22002158		Spring, Gear Return	10	Appelez-nous	-
011	33002783		Holder, Switch	10	Appelez-nous	-
012	22003719		Screw, Latch	10	Appelez-nous	-
013	22003720		Nut, Latch	10	Appelez-nous	-
014	WP241877		Screw   (Replaces: 22002435)	10			$ 3.56
015	22002957		Cover, Latch Assembly (lwr)	10	Appelez-nous	-
016	33002784		Lock Clip, Door	10	Appelez-nous	-
017	22003055		Ramp, Door Hoop	10			$ 27.77
018	33002785		Switch, Door	10			$ 12.41
019	22002164		Cable, Door	10	Appelez-nous	-
020	NLA		Latch, Assy. (export)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
