| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
12002039 |
 |
Neptune Motor Conversion Kit |
10 |
|
|
$ 346.58 |
|
|
| 2 |
22004473 |
|
Motor Control Assembly |
90 |
|
|
$ 244.89 |
|
|
| 2 |
22004473 |
|
Motor Control Assembly |
89 |
|
|
$ 244.89 |
|
|
| 2 |
22004473 |
|
Motor Control Assembly |
87 |
|
|
$ 244.89 |
|
|
| 2 |
W11573574 |
 |
Screw (Replaces: 22001995) |
87 |
|
Immediately |
$ 12.62 |
|
|
| 2 |
W11573574 |
|
Screw (Replaces: 22001995) |
89 |
|
Immediately |
$ 12.62 |
|
|
| 2 |
WP22004046 |
 |
Control Assy., Motor (Replaces: 22004046) |
78 |
|
|
$ 376.55 |
|
|
| 2 |
22002470 |
|
Control Assy., Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
22003249 |
|
Control Assy., Motor |
27 |
Appelez-nous
|
- |
|
|
|
| 3 |
22003442 |
|
Motor, (156 T) 60hz 120v |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
22003856 |
|
Motor, Variable Speed |
78 |
|
|
$ 322.00 |
|
|
| 3 |
22003247 |
|
Motor, Drive (60hz) |
27 |
Appelez-nous
|
- |
|
|
|
| 4 |
33001989 |
|
Retainer, Wire |
78 |
Appelez-nous
|
- |
|
|
|
| 4 |
22004047 |
|
Harness, Motor/motor Control |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
2205083 |
|
Harness, Wire |
87 |
Appelez-nous
|
- |
|
|
|
| 4 |
2205140 |
|
Harness, Wire |
90 |
Appelez-nous
|
- |
|
|
|
| 5 |
Y310632 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
WP308605 |
|
Clip (Replaces: 22002014) |
10 |
|
|
$ 10.08 |
|
|
| 6 |
33001989 |
|
Retainer, Wire |
78 |
Appelez-nous
|
- |
|
|
|
| 7 |
WP3351614 |
 |
Screw (Replaces: 22002019) |
10 |
|
Immediately |
$ 6.26 |
|
|
| 8 |
22002058 |
|
Bolt, Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
22003686 |
 |
Bolt, Motor |
39 |
|
|
$ 6.14 |
|
|
| 9 |
22002320 |
|
Washer, Strut |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
22002082 |
|
Isolator, Motor |
10 |
Appelez-nous
|
- |
|
|
|

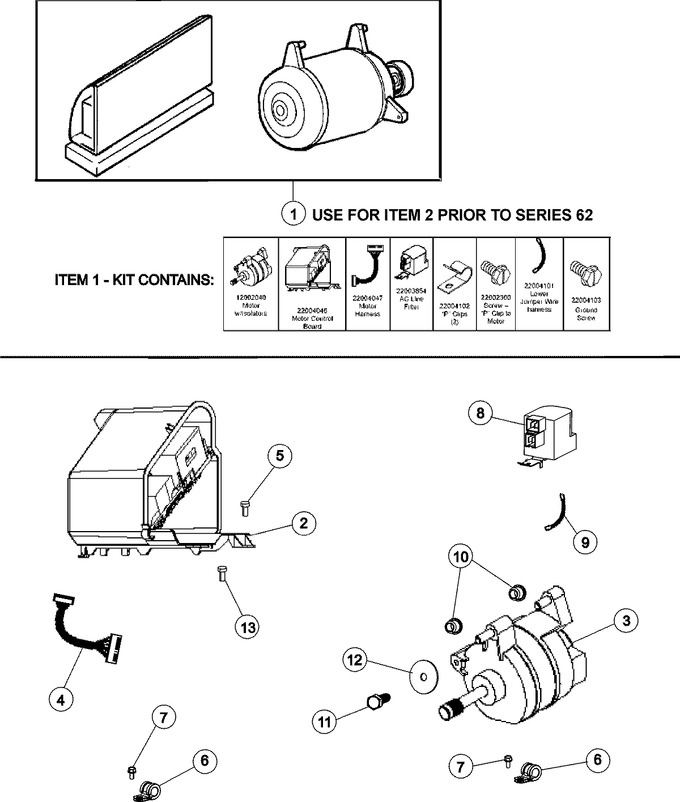

View Diagram in Separate Window
