| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
22002154 |
|
Tub Assy. (outer) |
10 |
Appelez-nous
|
- |
|
|
|
| 1 |
22003837 |
|
Dispenser Hose |
10 |
Appelez-nous
|
- |
|
|
|
| 1 |
22004465 |
 |
Outer Tub Assy, As Pack |
81 |
|
|
$ 1,380.36 |
|
|
| 1 |
22002006 |
|
Clip |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
22003302 |
|
Switch, Internal Unbalance |
55 |
|
|
$ 44.42 |
|
|
| 2 |
22002045 |
|
Switch, Inertial - Unbalance |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
WP9740848 |
|
Screw (Replaces: 22002300) |
10 |
|
Immediately |
$ 7.07 |
|
|
| 3 |
22002061 |
|
Screw |
55 |
Appelez-nous
|
- |
|
|
|
| 4 |
33002216 |
|
Wire Harness, Unbalance /comm |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
22001981 |
|
Ring, Retaining |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
33002973 |
|
Screw, No.9-15 X 1.00 Hx Ws |
86 |
Appelez-nous
|
- |
|
|
|
| 6 |
22001991 |
|
Bolt |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
22003828 |
|
Plated Bolt, Double Sems Su |
76 |
Appelez-nous
|
- |
|
|
|
| 7 |
22002067 |
|
Washer, Counter Balance |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
22003828 |
|
Plated Bolt, Double Sems Su |
76 |
Appelez-nous
|
- |
|
|
|
| 8 |
33002973 |
|
Screw, No.9-15 X 1.00 Hx Ws |
86 |
Appelez-nous
|
- |
|
|
|
| 8 |
22002056 |
|
Bolt |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
22002102 |
|
Weight, Counter Balance |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP22002083 |
 |
Hose, Injector (Replaces: 22002083) |
10 |
|
|
$ 124.55 |
|
|
| 11 |
WP616099 |
 |
Clamp, Injector Hose (Replaces: 22002052) |
10 |
|
Immediately |
$ 7.03 |
|
|
| 12 |
22002103 |
|
Clip, U |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
22004310 |
|
Deflector, Water (Replaces: 22002004) |
10 |
|
|
$ 13.68 |
|
|
| 13 |
22004310 |
|
Deflector, Water (Replaces: 22002959) |
23 |
|
|
$ 13.68 |
|
|
| 14 |
22002006 |
|
Clip |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
22002061 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 15 |
22002065 |
|
Nut, Counter Balance |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
WP22002044 |
 |
Switch, Tub Displacement (Replaces: 22002044) |
10 |
|
|
$ 80.94 |
|
|
| 16 |
WP22002044 |
|
Switch, Tub Displacement (Replaces: 22002044) |
55 |
|
|
$ 80.94 |
|
|
| 17 |
22002061 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
WP596669 |
 |
Hose Clamp - 1-1/16 Inch (Replaces: 202515) |
10 |
|
Immediately |
$ 7.56 |
|
|
| 19 |
22002483 |
|
Hose, Air Dome (short) |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
WP285655 |
 |
Clamp, Drain Hose (Replaces: 22001984) |
10 |
|
Immediately |
$ 7.55 |
|
|
| 21 |
22002081 |
|
Hose, Tub Outlet |
10 |
Appelez-nous
|
- |
|
|
|
| 22 |
WP696392 |
 |
Clamp, Sump Hose (Replaces: 22002053) |
10 |
|
|
$ 7.31 |
|
|
| 23 |
22002006 |
|
Clip |
10 |
Appelez-nous
|
- |
|
|
|
| 23 |
22002579 |
|
Front Weight Bracket |
10 |
Appelez-nous
|
- |
|
|
|
| 23 |
22003826 |
|
Lower Bracket |
76 |
Appelez-nous
|
- |
|
|
|
| 23 |
22004472 |
|
Bracket, Lower |
81 |
|
|
$ 77.47 |
|
|
| 24 |
22002008 |
|
Strap |
10 |
Appelez-nous
|
- |
|
|
|
| 25 |
22002011 |
|
Cushion |
10 |
Appelez-nous
|
- |
|
|
|
| 25 |
22003827 |
|
Cushion |
76 |
Appelez-nous
|
- |
|
|
|
| 26 |
WP22003937 |
 |
Screw, Spinner (Replaces: 22002057) |
10 |
|
|
$ 7.43 |
|
|
| 27 |
WP22003936 |
 |
Washer, Spinner Shaft (Replaces: 22002055) |
10 |
|
|
$ 7.20 |
|
|
| 27 |
WP22003936 |
|
Washer (1 1/4``) (Replaces: 22003936) |
54 |
|
|
$ 7.20 |
|
|
| 28 |
22002315 |
 |
Pulley, Spinner (Replaces: 22001998) |
10 |
|
|
$ 157.26 |
|
|
| 29 |
12001788 |
 |
Belt Kit, Drive (Replaces: 12001435) |
10 |
|
Immediately |
$ 37.69 |
|
|

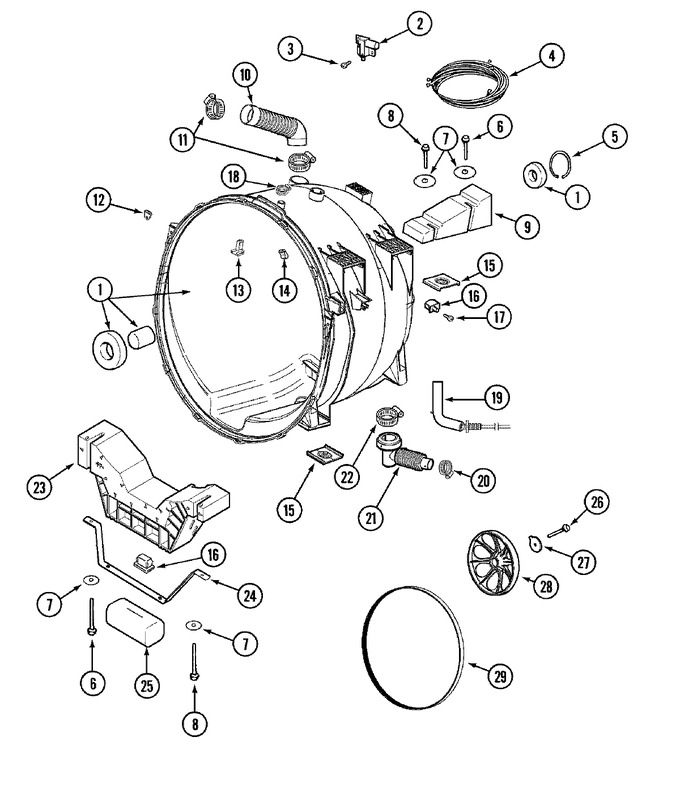

View Diagram in Separate Window
Print Part List
