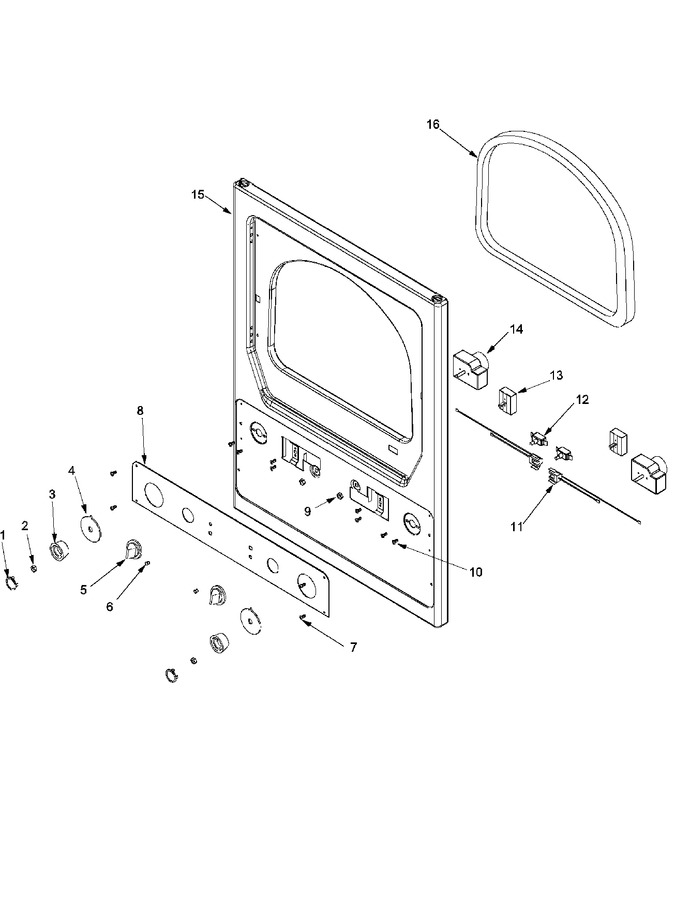

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPW10133501		Cap For Timer Knob   (Replaces: 314723)	10			$ 54.76
002	W10155650		Nut   (Replaces: 312273)	10			$ 12.03
003	W11232017		Knob For Timer   (Replaces: 314724)	10			$ 11.13
004	33001500		Skirt, Dial	10	Appelez-nous	-
005	205663		Knob For Selector Switch	10	Appelez-nous	-
006	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	10		Immediately	$ 7.14
007	WPW10131119		Screw, Torx   (Replaces: 215506)	10			$ 6.26
008	33002827		Facia, Comm. - Mn D/d	10	Appelez-nous	-
009	WPW10139799		Lock Washer   (Replaces: 312751)	10			$ 8.32
009	Y312706		Hex Nut On Switch	10	Appelez-nous	-
009	Y312702		Knurled Nut	10			$ 18.18
010	WP488234		Screw   (Replaces: Y313588)	10			$ 6.07
011	33002798		Lamp, Pilot	10	Appelez-nous	-
012	WPW10149462		Switch, Push-to-start   (Replaces: 306940)	10			$ 60.77
013	307253		Switch Cycle Sel	10	Appelez-nous	-
014	Y307296		Timer Rpr	10			$ 148.86
015	33002824		Panel, Mn Flat Front	10	Appelez-nous	-
016	33001767		Seal, Shroud	10			$ 25.05
