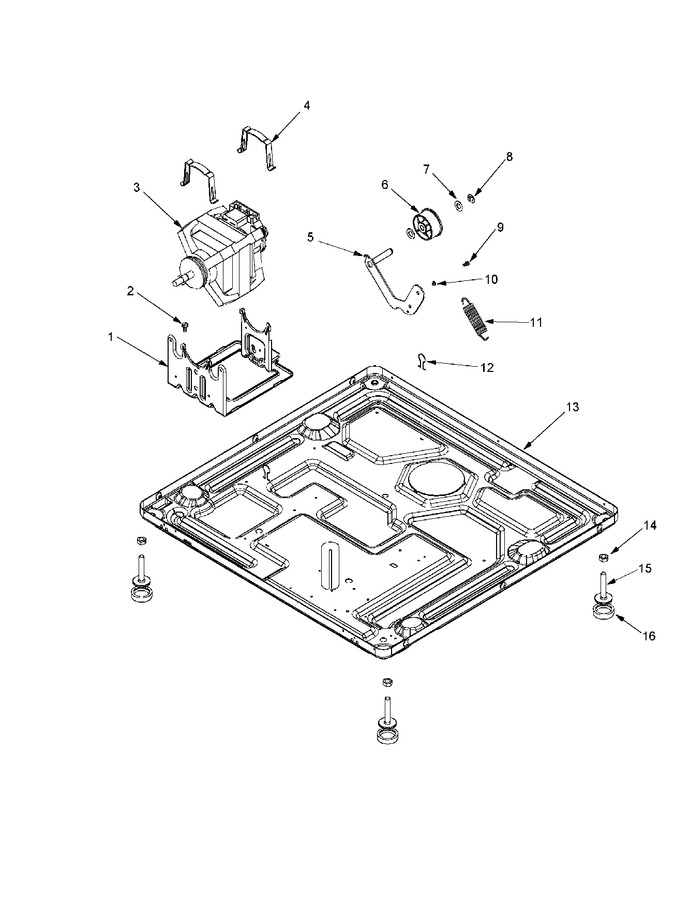

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002466		Support, Motor	10	Appelez-nous	-
002	Y313561		Screw----na	10			$ 5.27
003	WP33002795		Motor, Drive 60hz   (Replaces: 33002795)	10		Immediately	$ 229.65
004	WPY015825		Clip, Motor   (Replaces: 33002221)	10			$ 21.03
005	WP6-3705180		Idler Arm & Shaft Assy.   (Replaces: 33001840)	10		Immediately	$ 44.32
006	WP6-3700340		Bearing, Idler Assembly   (Replaces: 33001783)	10		Immediately	$ 24.98
007	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)	10		Immediately	$ 10.01
008	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)	10		Immediately	$ 10.58
009	WPY014874		Screw   (Replaces: Y014874)	10			$ 6.98
010	33002218		Grommet, Idler Arm	10	Appelez-nous	-
011	33002459		Spring, Idler   (Replaces: 33002460)	10			$ 6.94
012	410490		Spring, Wire Harness	10	Appelez-nous	-
013	33002816		Base (upr)	10	Appelez-nous	-
013	NLA		Base, (lwr)----na	10	Appelez-nous	-
014	WP62739		Nut   (Replaces: Y052740)	10			$ 6.85
015	WP8563585		Adjustable Leg W/foot & Nut   (Replaces: 22003544)	10		Immediately	$ 13.28
016	WP210684		Foot, Rubber   (Replaces: 210684)	10		Immediately	$ 14.09
