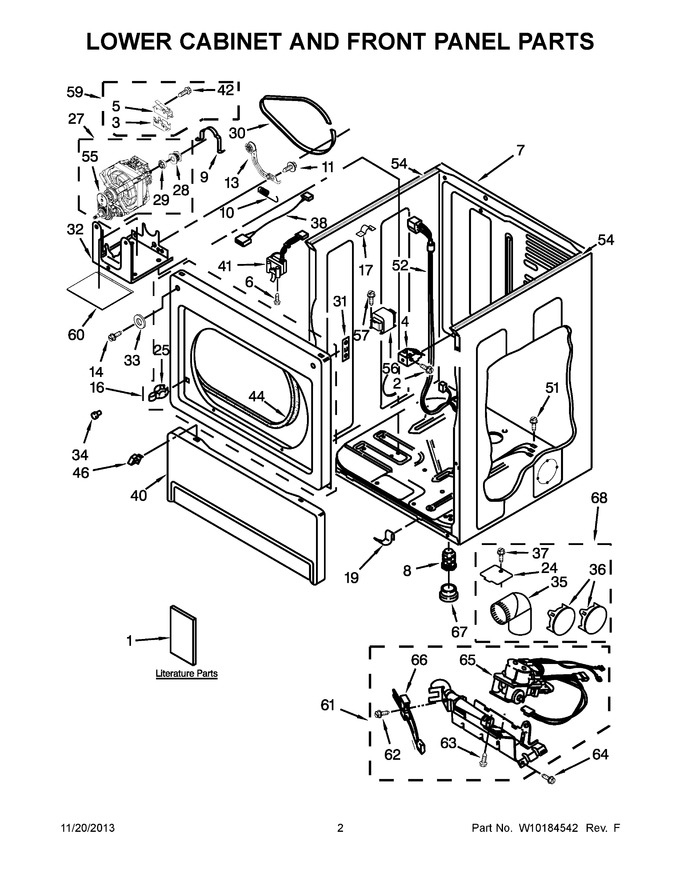

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184555 | Installation Instructions |
|
- | |||||
| 1 | W10184546 | Tech Sheet |
|
- | |||||
| 2 | W10223793 | Screw |
|
- | |||||
| 3 | 8564011 | Bracket, Switch |
|
$ 16.35 | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 5 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 89.24 | |||||
| 6 | W10080540 | Screw |
|
- | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: 8310656) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10141380) |
|
Immediately | $ 81.06 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.25 | |||||
| 16 | W10234293 | Upper Front Panel |
|
- | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 24 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 25 | W10080240 | Strike, Door |
|
- | |||||
| 27 | W10416574 | Assembly, Motor (50 Hz.) (Replaces: W10142402) |
|
$ 299.25 | |||||
| 28 | W10167237 | Pulley |
|
- | |||||
| 29 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 113.26 | |||||
| 33 | W10223794 | Washer |
|
- | |||||
| 34 | 693152 | Bumper |
|
$ 9.86 | |||||
| 35 | 279731 | Elbow (4``) |
|
- | |||||
| 36 | WPW10404617 | Multivent Plug (white) (Replaces: 49252) |
|
$ 64.78 | |||||
| 37 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 | ||||
| 38 | W10231861 | Jumper, Door Switch |
|
- | |||||
| 40 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 42 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 43 | W10080840 | Screw |
|
- | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 51 | WP489464 | Screw (Replaces: W10080700) |
|
Immediately | $ 7.05 | ||||
| 52 | W10111036 | Harness (lower) |
|
- | |||||
| 54 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 34.04 | |||||
| 55 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 31.71 | ||||
| 56 | W10851673 | Transformer (Replaces: 3977633) |
|
$ 357.83 | |||||
| 57 | W11676450 | Screw (Replaces: W10080740) |
|
$ 12.65 | |||||
| 58 | W10190549 | Jumper, Transformer |
|
- | |||||
| 59 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 60 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 19.96 | |||||
| 61 | W10096909 | Burner Assembly 50 Hz. (type 1 And 2) |
|
- | |||||
| 62 | WPW10366705 | Screw (Replaces: W10080730) |
|
$ 6.75 | |||||
| 63 | W10080320 | Screw |
|
- | |||||
| 64 | WP693995 | Screw (Replaces: W10080630) |
|
Immediately | $ 6.47 | ||||
| 65 | WP8281918 | Valve, Gas 50 Hz. (complete) (Replaces: 8281918) |
|
$ 207.73 | |||||
| 66 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 67 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 68 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 |
