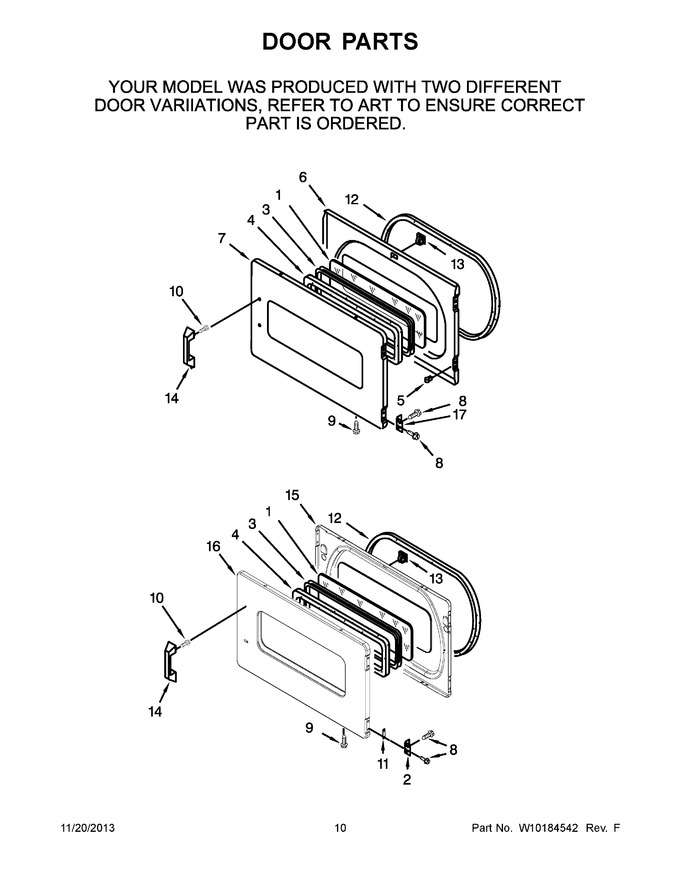

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3392918		Window		Appelez-nous	-
2	WPW10279703		Assembly, Hinge & Pin (silver)   (Replaces: W10279703)				$ 65.00
3	3392914		Frame, Window		Appelez-nous	-
4	3392915		Gasket, Window				$ 58.46
5	3389249		Nut, ``u``		Appelez-nous	-
6	W10244331		Door, Inner (white)   (Replaces: W10205622)		Appelez-nous	-
7	W10322548		Door, Outer (white)   (Replaces: W10205649)		Appelez-nous	-
8	W10080310		Screw		Appelez-nous	-
9	W10080300		Screw		Appelez-nous	-
10	W10080840		Screw		Appelez-nous	-
11	W10191265		Plug, Hinge (white)				$ 39.85
12	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
13	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
14	WPW10213202		Handle, Door   (Replaces: W10213202)			Immediately	$ 74.08
15	W10244331		Door, Inner (white)   (Replaces: W10323063)		Appelez-nous	-
16	W10322548		Door, Outer (white)		Appelez-nous	-
17	W11175815		Assembly, Hinge & Pin (silver)   (Replaces: 3389247)				$ 73.27
